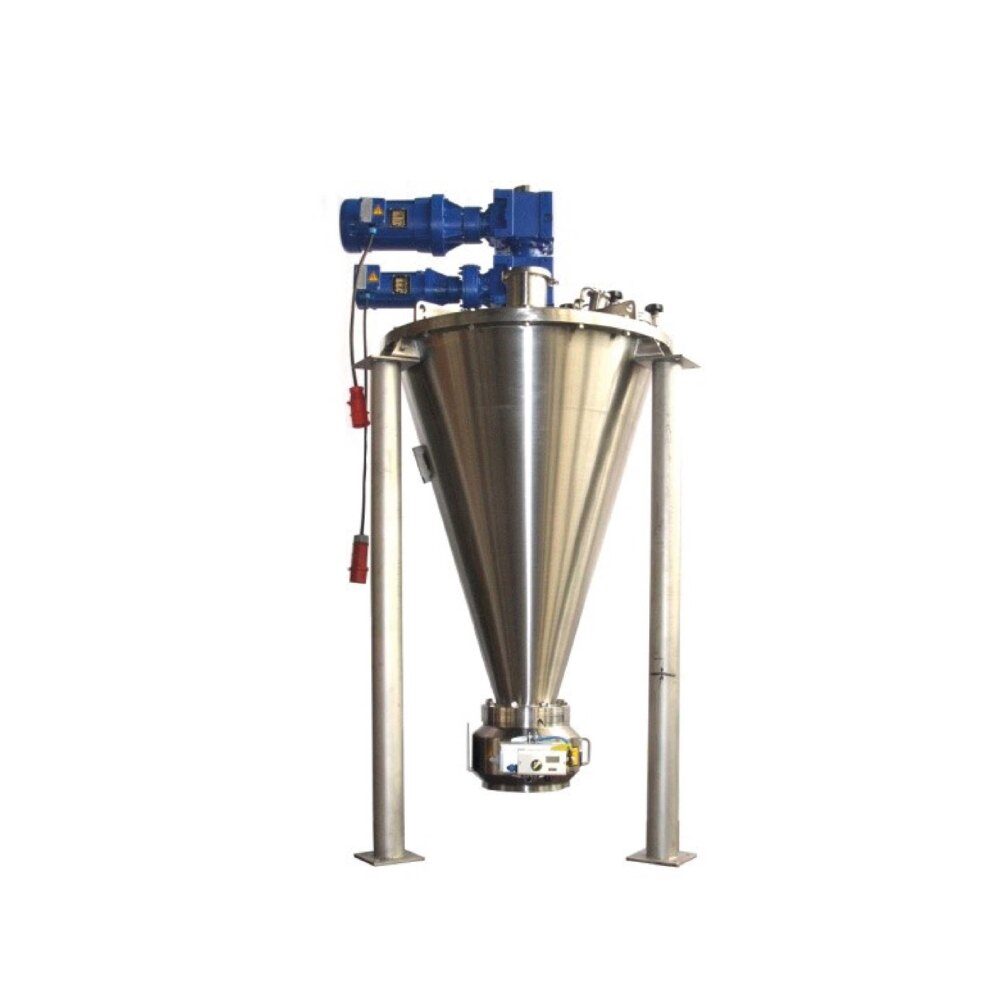

HEINKEL Conical Screw Mixer

Small drive power without mechanical or thermal product demolition by wear/attrition
High mixing result and efficiency, perfect blending and good mixing time
Unique suitability for a wide range of industrial products with various character like density, particle size and shape, proportions etc. without risk of segregation
Maximum flexibility with just partial load from 10 to 100%
Well suited for multi-product application and frequently changing product volume
Central, unrestricted and residue-free product discharge with a homogeneous product flow
Good cleanabilty with a complete and residue free drain of cleaning fluids

Technical Data

Temperatures	Orbital system: Operating temperature 160°C Central shaft: Operating temperature 240°C
Pressure	Operating pressure: -1 bar up to +6 bar (10 bar ESP explosion shock proof design, different pressure acc. customer requirement)
Materials	Stainless steel such as: AISI 304 AISI 316L AISI 316 AISI 904L Hastelloy C22
Surface finish	Product contact – fine polish / electro-polish Externals – sanitary polish / glass blast bead
Variations	Optimized versions and specialized details for chemical and pharmaceutical application or according customized requirements
Rotary shaft seals	From single- or multiple lip seal assembly to dry, gas-purged or liquid quench, non-contact lift-off mechanical seals. Preferred in a safe and quick change cartridge design.
Regulations/ Standards	European PED Pressure Equipment Directive with AD-2000 calculation ASME and ASME Code VIII GB150 SELO SVDB CODAP JIS GOST certificate GMP and cGMP FDA REACH regulation ATEX / NEC / CEC / IEC TA Luft (air quality control)
Options	Diverse sensors for temperature and pressure monitoring Sampling valves (also with containment) Filling and discharge valves WIP / CIP / SIP nozzles Filter with reverse jet cleaning Heating jacket / insulating jacket
