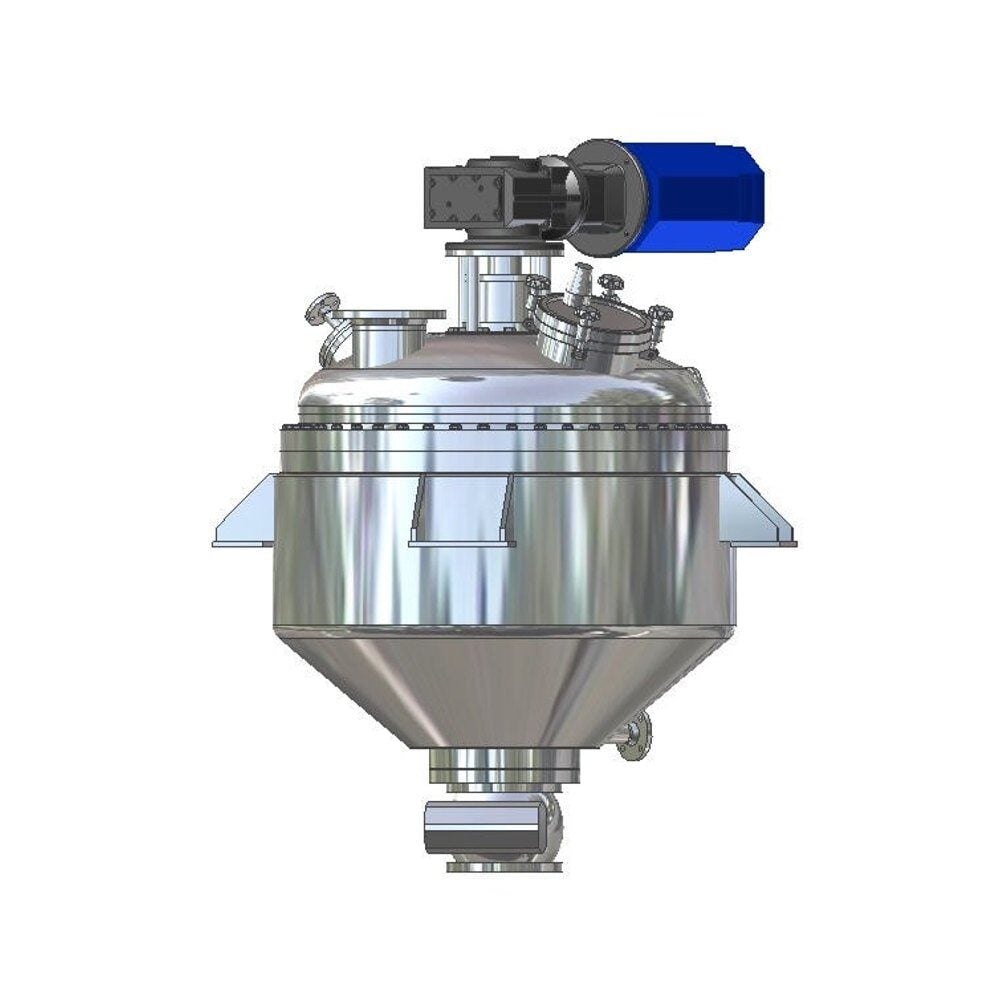

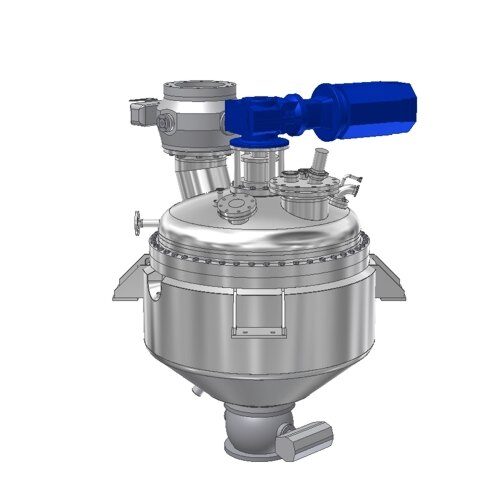

HEINKEL Cylindro Conical Dryer

The Cylindro Conical Dryer CCD with a central shaft agitator was developed to be used both as a dryer (e.g. for filter cake) and also an evaporator when products have to pass a critical phase change from fully liquid to final bulk solid. The robust mixing element is showing its effective performance also during liquid and high viscous pasty phase to finally achieve the desired solid phase. As a dryer it is designed with a vacuum-/pressure rated vessel, heating jacket and integrated dust filter. Like for the CCM (Cylindro Conical Mixer) also the CCD offers a big advantage with a compact and space saving design.

Advantages

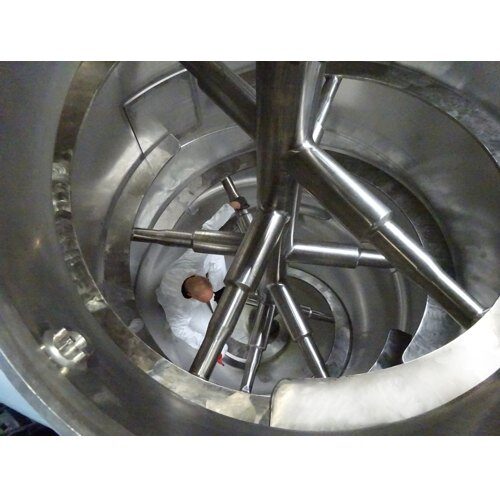

Short drying times because all product of the batch is permanently in motion thanks to a heated helix agitator (optional)
Uniform heat distribution during the process without cold spots
Variable speed of the helix agitator for optimum product quality
Useful working volume from 15% to 80% of the gross volume
Suitable for powders, liquids and pastes
Very good discharging
Very good heat transfer (high k-values)
Shaft sealing and bearings installed outside of the drying chamber
ATEX design and EHEDG compliant design

Technical Data

Temperatures	Orbital system: Operating temperature 160°C Central shaft: Operating temperature 240°C
Pressure	Operating pressure: -1 bar up to +6 bar (10 bar ESP explosion shock proof design, different pressure acc. customer requirement)
Materials	Stainless steel such as: AISI 304 AISI 316L AISI 316 AISI 904L Hastelloy C22
Surface finish	Product contact – fine polish / electro-polish Externals – sanitary polish / glass blast bead
Variations	Optimized versions and specialized details for chemical and pharmaceutical application or according customized requirements
Rotary shaft seals	From single- or multiple lip seal assembly to dry, gas-purged or liquid quench, non-contact lift-off mechanical seals. Preferred in a safe and quick change cartridge design.
Regulations/ Standards	European PED Pressure Equipment Directive with AD-2000 calculation ASME and ASME Code VIII GB150 SELO SVDB CODAP JIS GOST certificate GMP and cGMP FDA REACH regulation ATEX / NEC / CEC / IEC TA Luft (air quality control)
Options	Diverse sensors for temperature and pressure monitoring Sampling valves (also with containment) Filling and discharge valves WIP / CIP / SIP nozzles Filter with reverse jet cleaning Heating jacket / insulating jacket

Cylindro Conical Dryer

Series CCD (100 - 20,000 liters)
