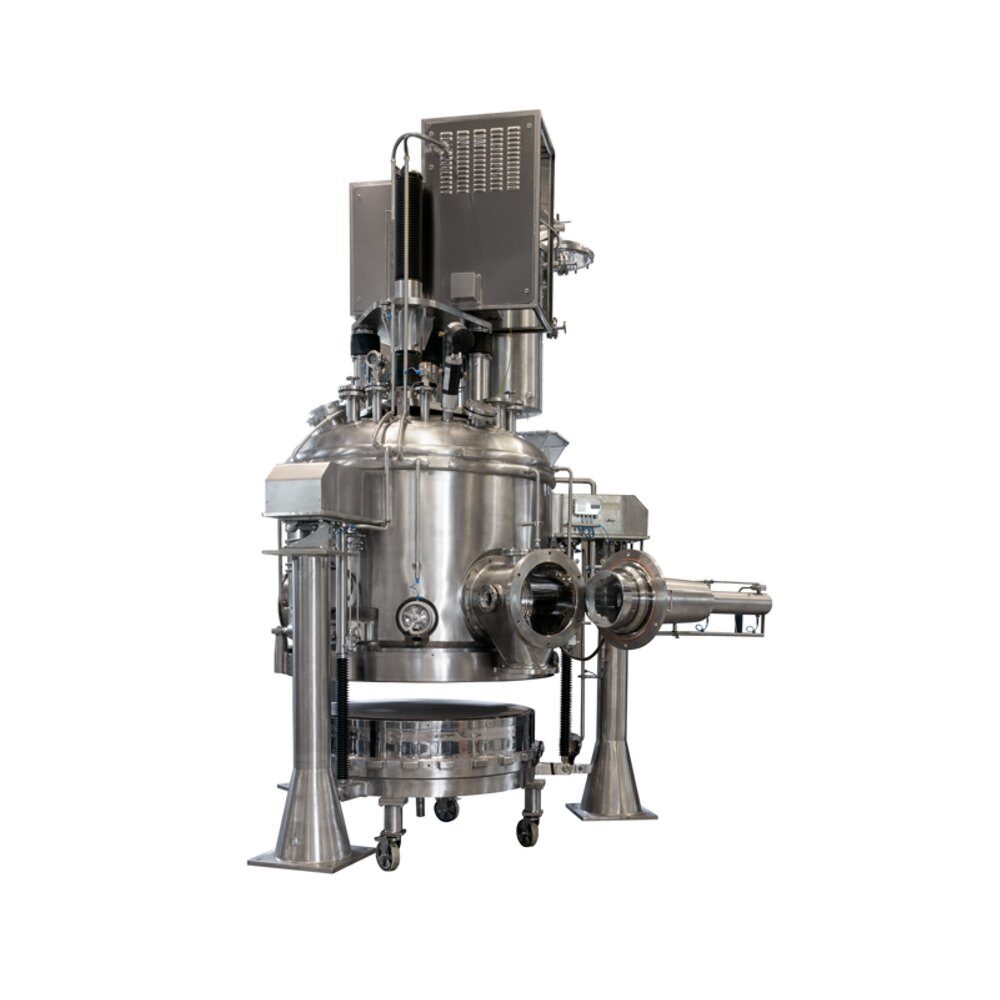

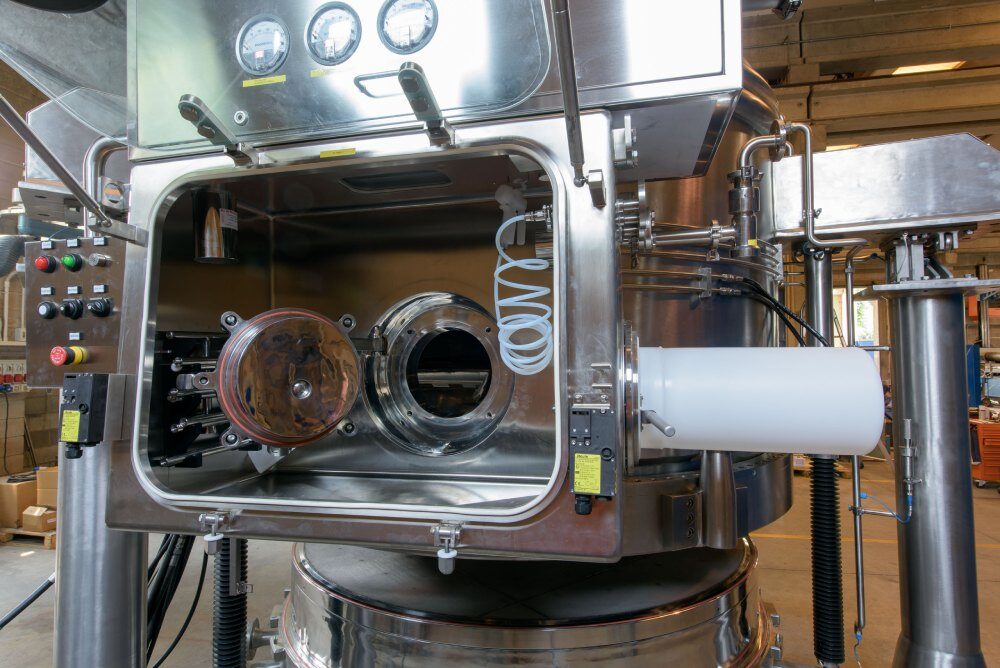

HEINKEL Filter Dryer Pharma Design

Excellent cleanability using CIP systems, simple validation

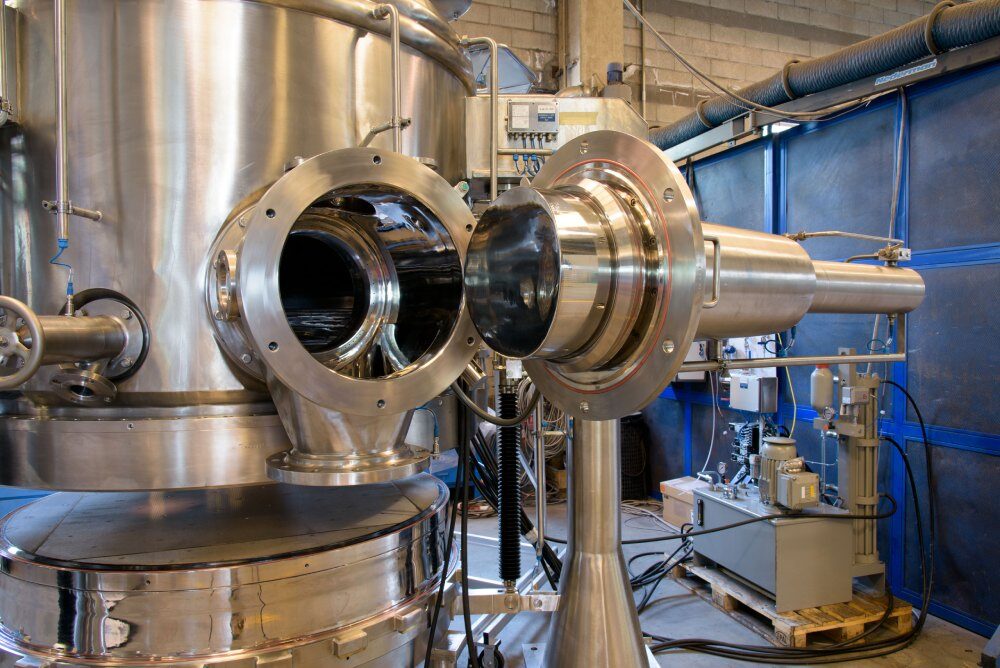

Openable filter base provides for good access to the filter internals for cleaning and inspection
Easily interchangeable filter plates, with flat, homogeneous filter surfaces for good cleanability and inspection
Multilayer and/or conventional filter materials

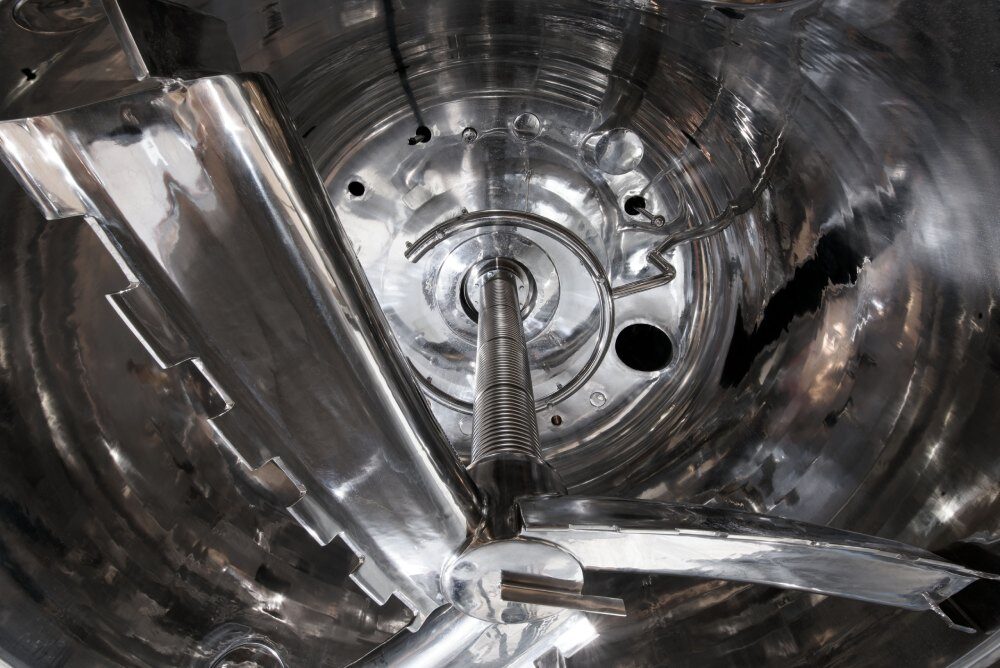

Good drying performance with special agitator design, large heat exchange areas
Double mechanical seals, externally interchangeable, dry running contacting or non-contacting lift-off type seals as well as liquid lubricated seals

Technical Data

Product wetted materials	Stainless steels, Nickel based alloys such as Hastelloy C 22 or Alloy 59, Titanium, etc.,
Sealing materials	PTFE gaskets, O-Rings in FFKM or FEP encapsulated
Area classification	EU-Type Examination Certificate INERIS the 2014/34/EU Directive, or with electrical components UL approved for operation in a Class 1, Division 1 or 2, Groups C&D environment
Controls	Control cabinet with PLC, HMI with touch screen, MCC, interface for DCS
Guidelines	Calculation, design and manufacture in accordance with the Pressure Equipment Directive (PED) 2014/68/EU and /or the ASME pressure vessel code, Section VIII, with U-Stamp
Filter area	0.20 to 10 m²
Slurry volume	100 – 10,000 liters
Design temperature	-10 to 150°C (14 to 302°F) or per requirements
Design pressure	-1 to +4 barg (FV to 60 psig) or per requirements
Heated areas	All product wetted components, including agitator
Accessories	Dust filter with automatic back cleaning, sampling valve, CIP system, sight glass with vessel light, vacuum system with condenser, heating and cooling unit etc.
