    Horizontal Peeler Centrifuge Chemical

    Chemical Design - Series H 630 - 1600 C
    bluetector-close (1)
    bluetector-open (1)
    haube-c (1)
    servoantrieb-c (1)
    bluetector-screw-conveyor (1)
    bluetector-frontalansicht (1)

    The HEINKEL horizontal peeler centrifuges in chemical design are used for separating medium to large product quantities that can be washed and then spin-dried. The centrifuges are designed for continuous operation with large product throughputs.
    advantages-block-icon

    Advantages

    • Proven, robust design
    • Successful realisation of customer specific requirements
    • Optimal adaptation to changing products and product characteristics
    • High throughput capacities because of short cycle times
    • Low residual moistures because of high g-forces
    • High product purities because of effective wash process

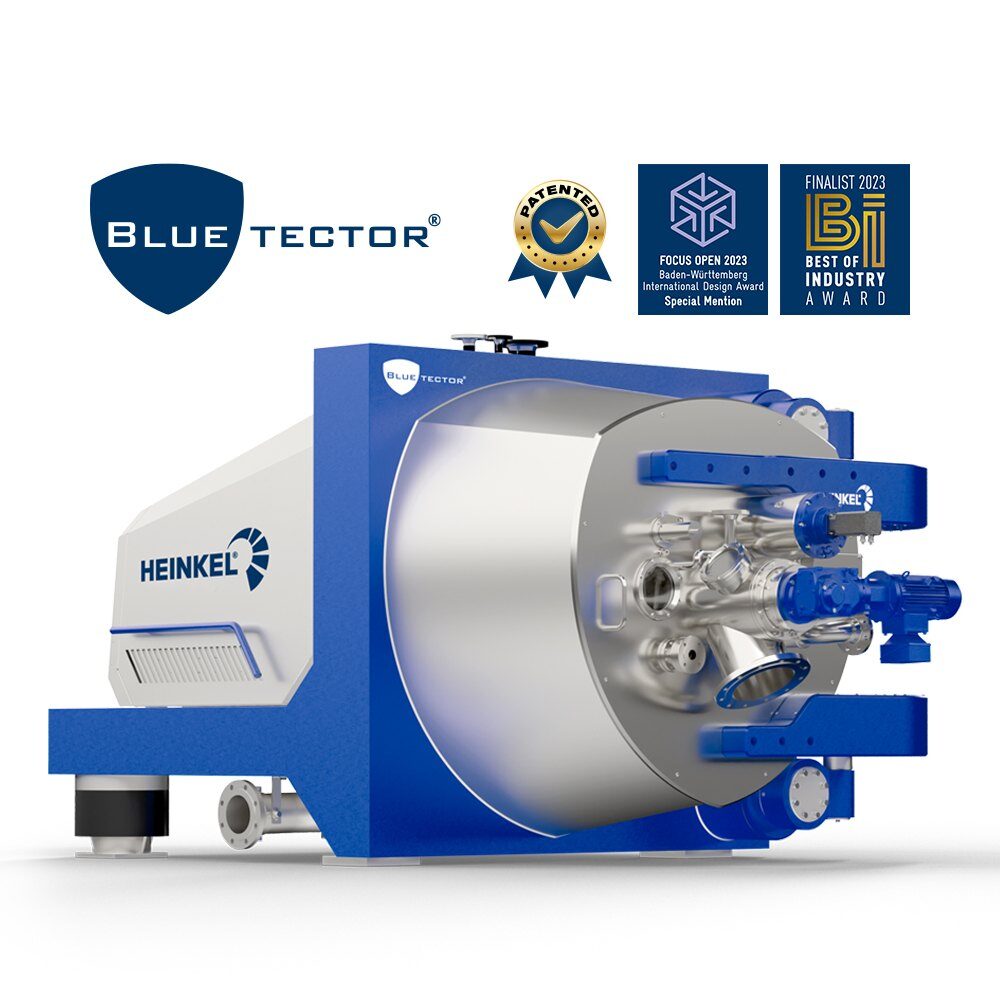

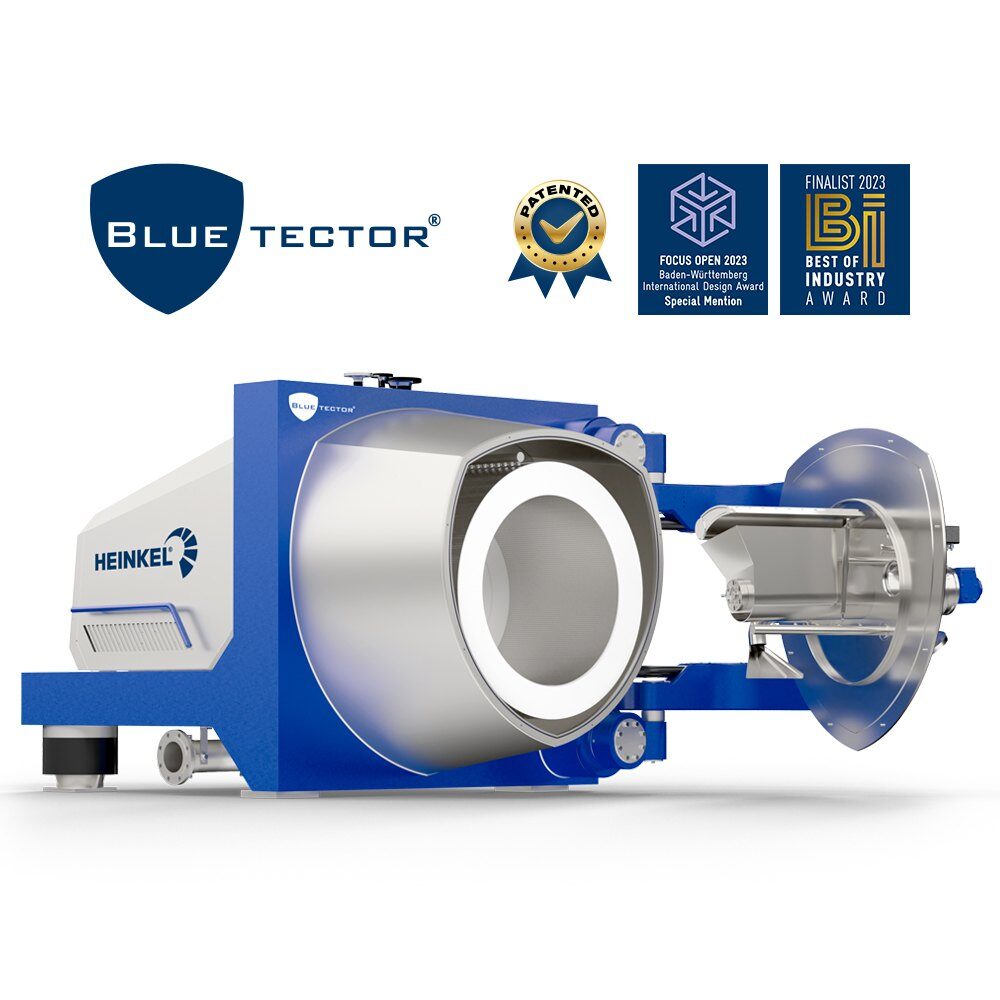

    The newly developed BLUETECTOR  designed on the H1250C platform proves that highest efficiency and maximum flexibility do not require any compromise!

    BLUETECTOR® H 1250 C › NEW GENERATION › Electrically into the future

    • Highest energy and process efficiency from centrifugation up to the solids discharge
    • Shortest possible cycle times
    • Maximum flexibility via parameter variation of the solely electrically driven discharge process

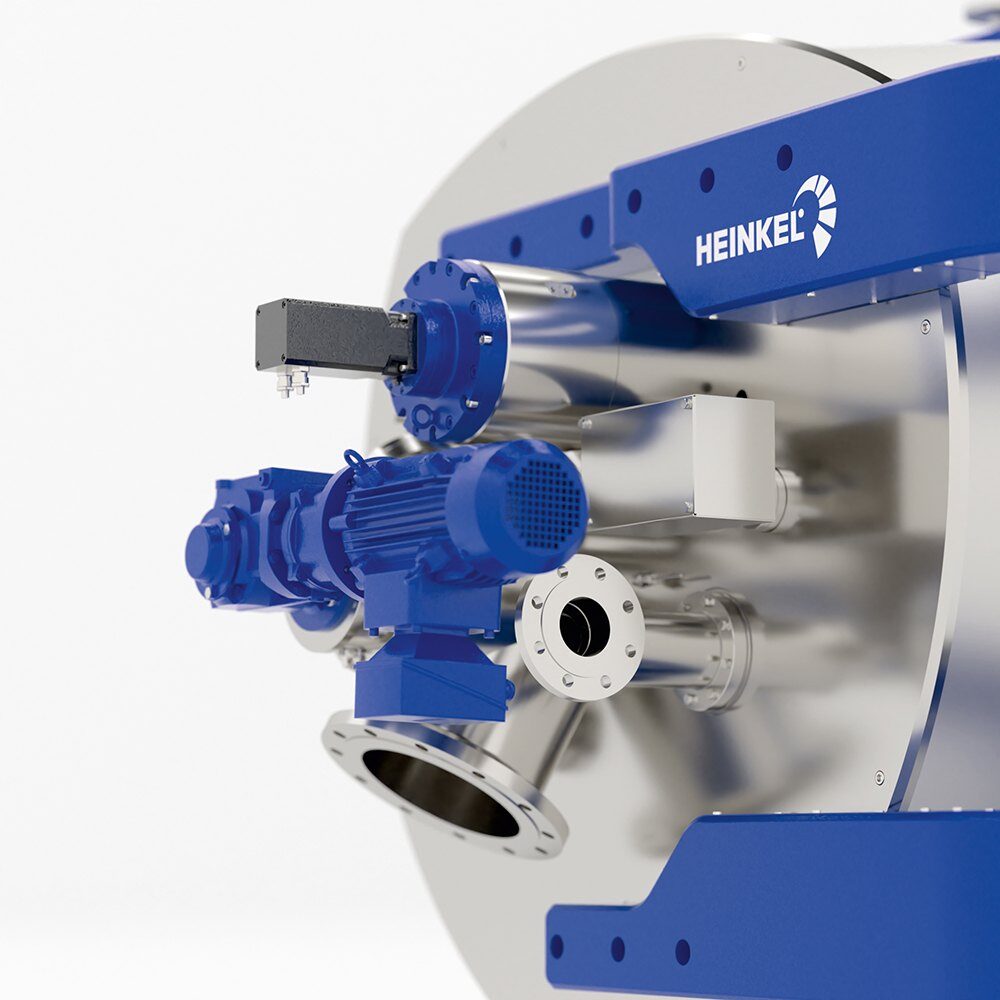

    • Innovative electro drive concept replaces hydraulics – for Ex-areas up to ATEX-Zone 1
    • Patented housing design for optimised guiding of process media
    • Reduced noise emission

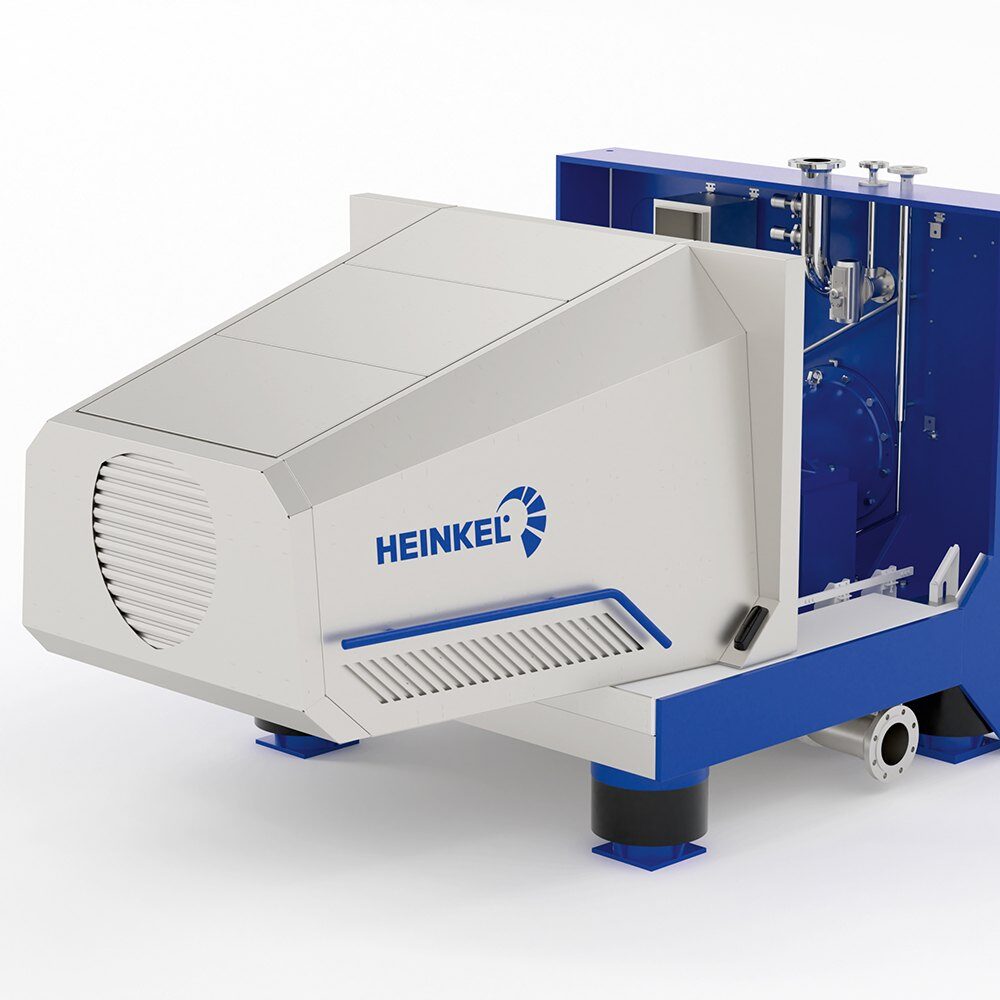

    • Slidable machine housing
    • Excellent serviceability
    • Intelligent energy management reduces operational costs

    Technical Data

    Centrifuge type Basket diameter (mm) Basket depth (mm) Filter area (m²) Nominal volume
    (l)    		 Max. Filling (kg) Max. Speed
    (1/min)    		 Centrifugal force
    (x g)
    H 630 C 630 400 0.79 49 62 2,400 2,028
    H 800 C 800 500 1.26 100 125 1,900 1,614
    H 1000 C 1,000 630 1.98 209 260 1,500 1,258
    H 1250 C 1,250 800 3.14 414 518 1,200 1,006
    H 1600 C 1,600 1,000 5.03 860 1,075 950 807

    Dimensions and Weights

    Centrifuge type Length (mm) Width (mm) Height
    (mm)    		 Weight
    (kg)
    H 630 C 2,630 1,370 1,830 4,100
    H 800 C 2,720 1,520 1,980 6,500
    H 1000 C 3,180 1,770 2,230 11,200
    H 1250 C 3,828 2,270 2,176 17,000
    H 1600 C 3,940 2,320 2,780 18,500

    Have Questions? We are here to help.

    Get In Touch

    Applications
    card-icon-chemicals

    Chemicals
    card-icon-fine-chemicals

    Fine Chemicals

    card-icon-food-products

    Food Products
