    Horizontal Peeler Centrifuge Pharma

    Pharma Design - Series H 630 - 1600 P
    H1300P-1 (1)
    H1300P_-cGMP-6 (1)
    Horizontal_peeler_P3-600x600

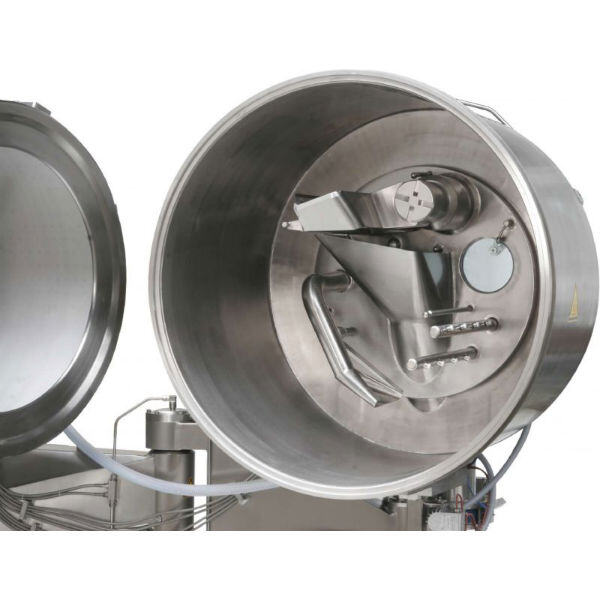

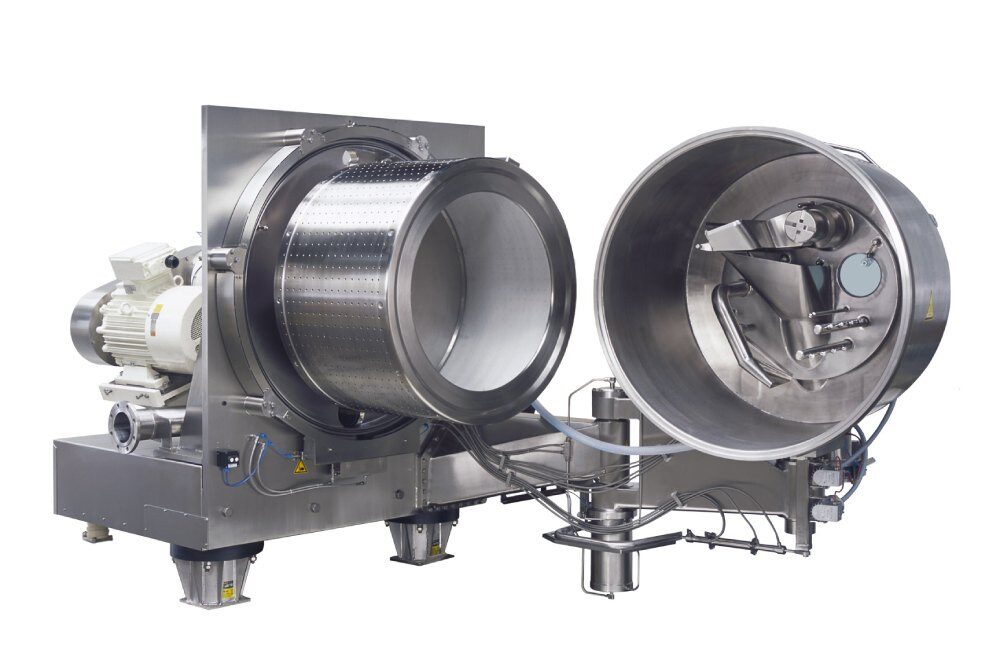

    The HEINKEL horizontal peeler centrifuges in pharma design are characterized by easy cleaning and inspection avoiding product contamination.
    advantages-block-icon

    Advantages

    • Swinging open housing for easy inspection
    • Clean room installation possible
    • Hydraulically operated housing locking mechanism by single clamping elements, therefore minimal area for product deposit
    • Fully automatic, validated CIP-process possible
    • Design virtually free of dead spaces, minimized number of screwed connections in the process housing
    • Filtrate outlet at the rear part of the process housing, low dismantling expenses to prepare for the opening of the housing
    • High flexibility at frequent product changes
    • Quick change of the filter element
    • Bearing designed as exchangeable unit

    Technical Data

    Centrifuge type Basket diameter (mm) Basket depth (mm) Filter area (m²) Nominal volume
    (l)    		 Max. Filling (kg) Max. Speed
    (1/min)    		 Centrifugal force
    (x g)
    H 630 P 630 315 0.62 42 51 2,400 2,078
    H 800 P 800 400 1.0 85 105 1,800 1,449
    H 1000 P 1,000 500 1.57 170 214 1,500 1,258
    H 1300 P 1,300 700 2.86 303 473 1,200 1,046
    1,300 800 3.27 346 541 1,200 1,046
    H 1600 P 1,600 800 4.02 703 880 1,000 894

    Dimensions and Weights

    Centrifuge type Length (mm) Width
    (mm)    		 Height (mm) Weight (kg)
    H 630 P 2,050 1,370 1,830 4,300
    H 800 P 2,420 1,520 1,980 4,900
    H 1000 P 2,780 1,820 2,250 10,000
    H 1300 P 3,250 2,110 2,820 16,700
    3,350 2,110 3,820 17,100
    H 1600 P 3,580 2,320 4,150 22,600
