    Horizontal Pilot Plant Centrifuge Chemical

    Chemical Design - Series H 500 - 630 C
    H300C-1 (1)

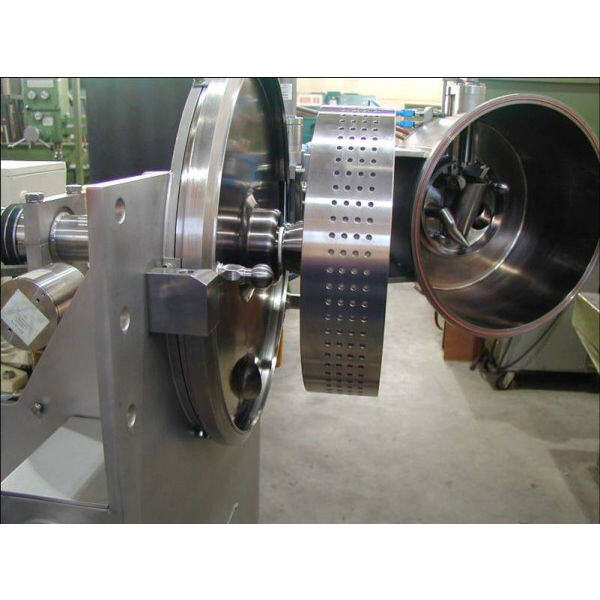

    Pilot-plant-centrifuge-HC3-600x600

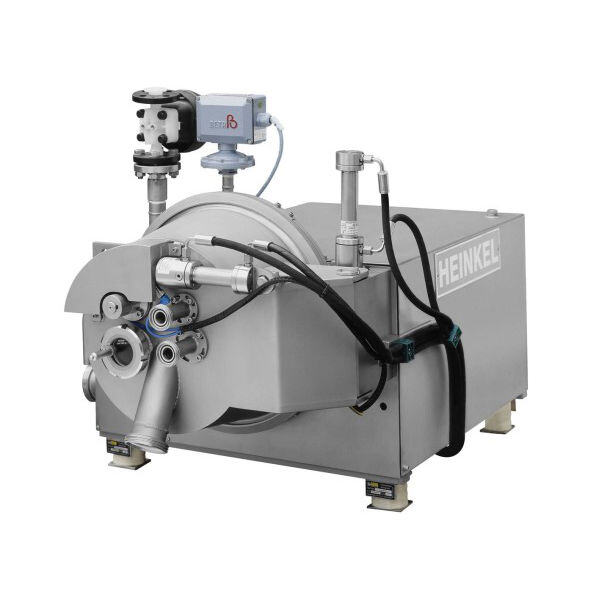

    Pilot-plant-centrifuge-HC1-600x600

    The wide selection of HEINKEL Pilot Plant centrifuge types with their different basket diameters allows for a solution to the separation task in every application.
    These machines can be flexibly operated in small production plants because of their design.

    HEINKEL fulfills the requirements for manufacturing quality, acceptance and documentation for chemical plants.
    advantages-block-icon

    Advantages

    • Compact design
    • Optional design as tabletop
    • Very simple installation "plug and use" application
    • Ideal for "upscaling"
    • Fully automatic operation

    Technical Data

    Centrifuge type Basketdiameter (mm) Basket depth (mm) Filter area (m²) Nominal volume (l) Max. Filling (kg) Max. Speed (1/min) Centrifugal force(x g)
    H 500 C 500 300 0.39 20 25 2,670 1,504
    H 630 C 630 400 0.79 49 62 2,400 2,028

    Dimensions and Weights

    Centrifuge type Length (mm) Width (mm) Height (mm) Weight (kg)
    H 500 C 2,000 1,010 1,950 3,900
    H 630 C 2,630 1,370 1,830 4,100
