    Horizontal Pilot Plant Centrifuge Pharma

    Pharma Design - Series H 300 - 500 P

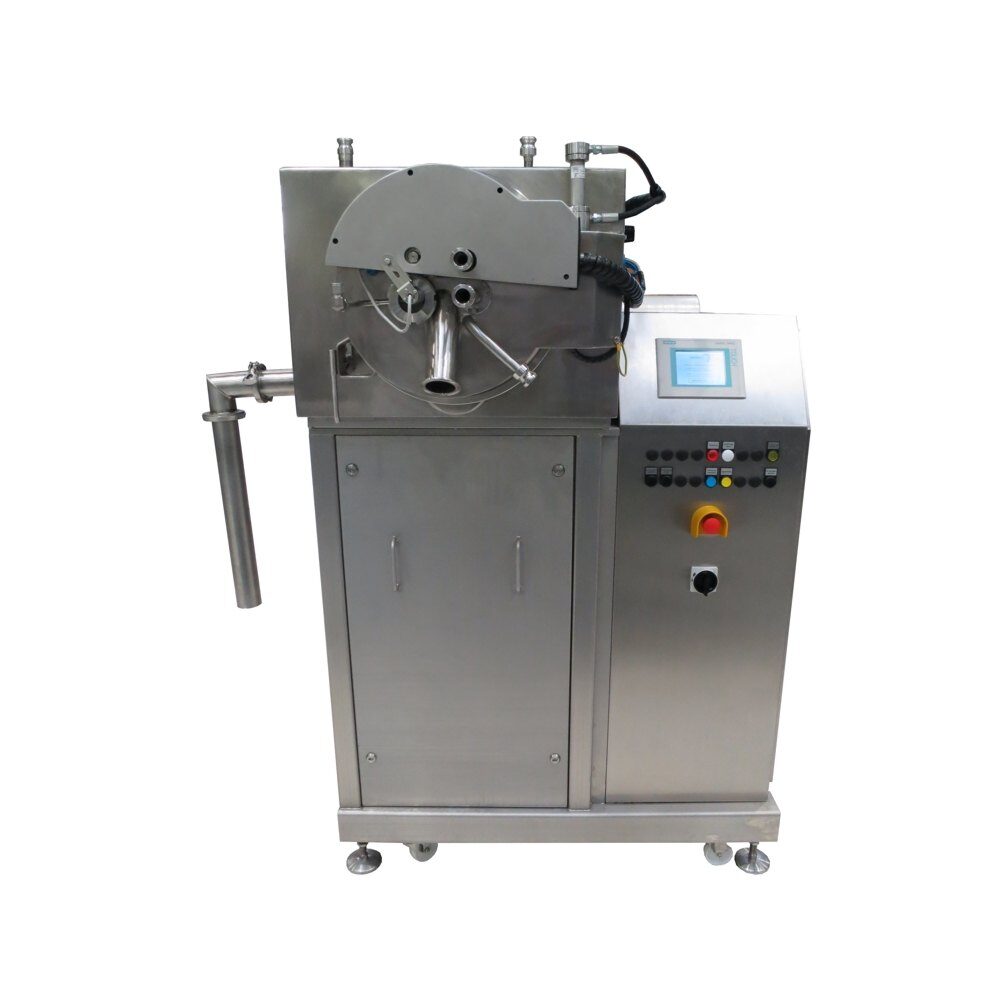

    H300P-1 (1)

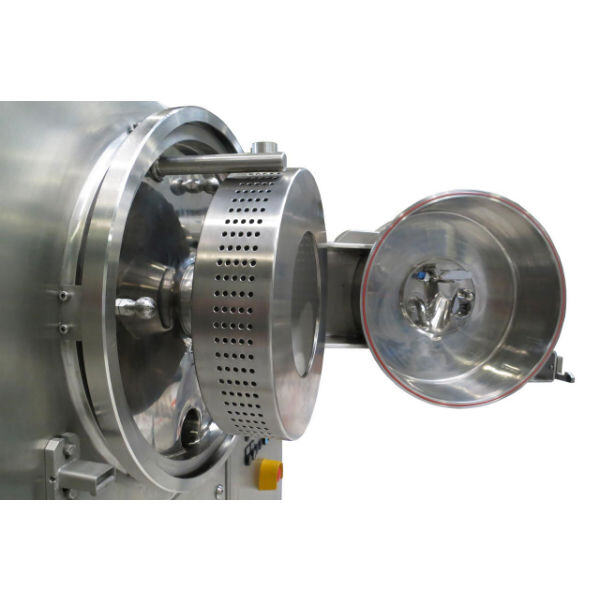

    pilot-plant-centrifuge-H2-600x600

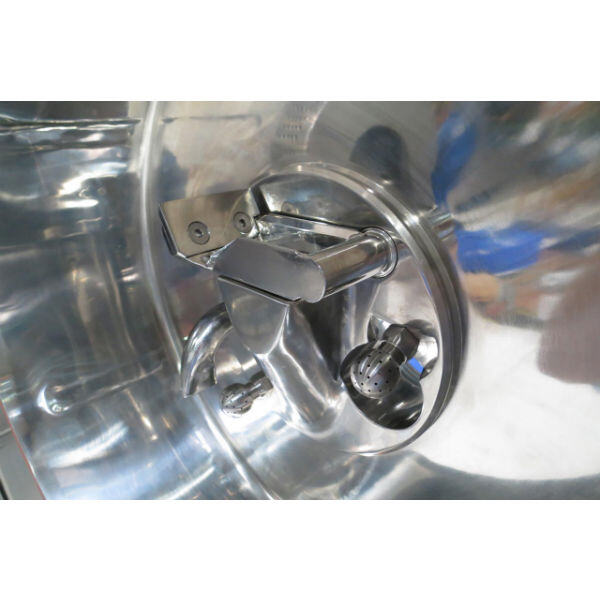

    pilot-plant-centrifuge-H3-600x600

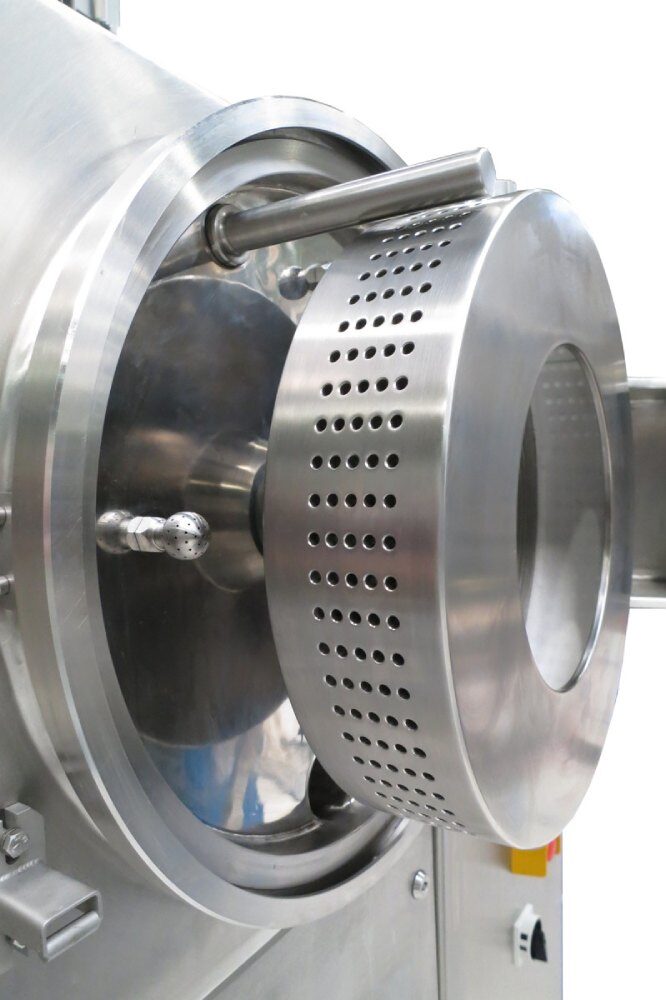

    H320P_Trommel_RSE (1)

    The wide selection of HEINKEL Pilot Plant centrifuge types with their different basket diameters allows for a solution to the separation task in every application.
    Due to their design, these machines can be flexibly operated in small production plants.

    HEINKEL meets the strict requirements about production quality, acceptance and documentation for pharmaceutical companies.
    advantages-block-icon

    Advantages

    • Compact design
    • Very simple installation "plug and use" application
    • cGMP compliant
    • Fully automatic operation
    • Ideal for “up scaling”

    Technical Data

    Centrifuge type Basket diameter (mm) Basket depth (mm) Filter area (m²) Nominal volume (l) Max. Filling (kg) Max. Speed(1/min) Centrifugal force (x g)
    H 300 P 300 150 0.14 3.24 4 3,450 1,996
    H 320 P 320 65 0.07 3.38 4 3,350 2,007
    H 500 P 500 300 0.39 20 25 2,670 1,504

    Dimensions and Weights

    Centrifuge type Length (mm) Width (mm) Height (mm) Weight (kg)
    H 300 P 1,040 700 1,780 750
    H 320 P 1,040 700 1,780 750
    H 500 P 1,900 1,210 1,690 3,900
