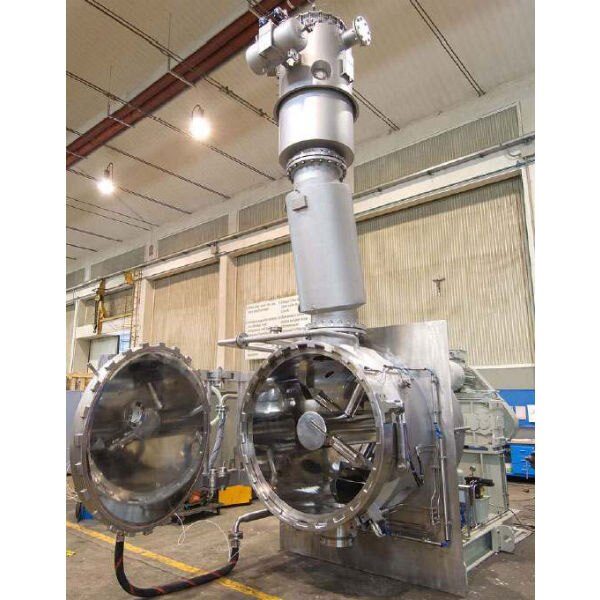

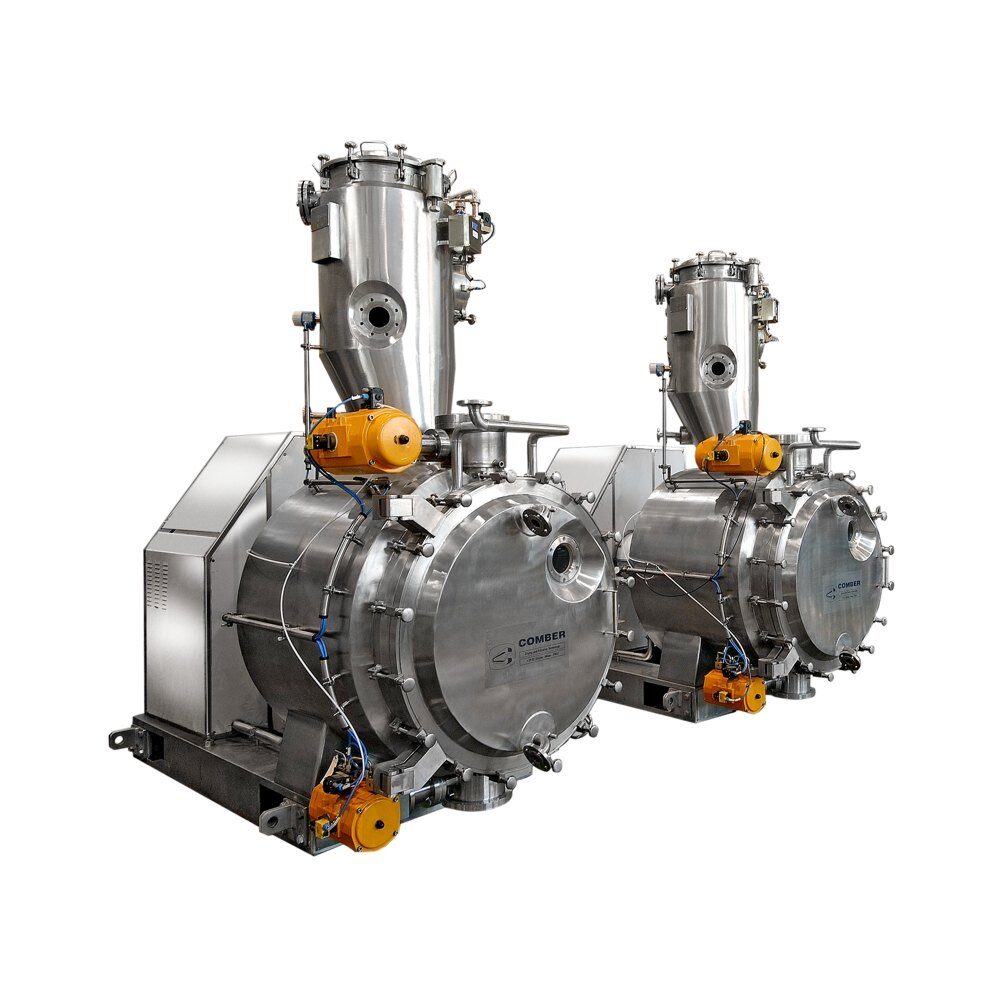

HEINKEL Horizontal Vacuum Dryer

In compliance with cGMP and FDA guidelines, also in aseptic/ steam sterilizable versions
Agitator supported at the rear, with externally exchangeable mechanical seal
Entirely welded agitator design, without any bolts, without pockets and with all edges rounded for good cleanability
Minimal build depth, thus very good accessibility for inspection and cleaning purposes
Excellent cleanability using CIP systems, simple validation
Available with separating wall between process and mechanical areas
Double mechanical seal, externally interchangeable, dry running contacting or non-contacting lift-off type seals as well as liquid lubricated seals

Technical Data

Product wetted materials	Stainless steels, Nickel based alloys such as Hastelloy C 22 or Alloy 59, Titanium, etc.,
Sealing materials	PTFE gaskets, O-Rings in FFKM or FEP encapsulated
Area classification	EU-Type Examination Certificate INERIS the 2014/34/EU Directive, or with electrical components UL approved for operation in a Class 1, Division 1 or 2, Groups C&D environment
Controls	Control cabinet with PLC, HMI with touch screen, MCC, interface for DCS
Guidelines	Calculation, design and manufacture in accordance with the Pressure Equipment Directive (PED) 2014/68/EU and /or the ASME pressure vessel code, Section VIII, with U-Stamp
Usable volume	50 – 4,000 liters
Design temperature	-10 to 150°C (14 to 302°F) or per requirements
Design pressure	-1 to +0,45 barg (FV to 6.5 psig), -1 to +6 barg (FV to 90 psig) in pressure proof version or per requirements
Heated areas	All product wetted components, including agitator shaft, arms and blades
Accessories	Dust filter with automatic back cleaning, sampling valve, CIP system, sight glass with vessel light, vacuum system with condenser, heating and cooling unit etc.
