    Inverting Filter
    Centrifuge F

    Series F1 - F4

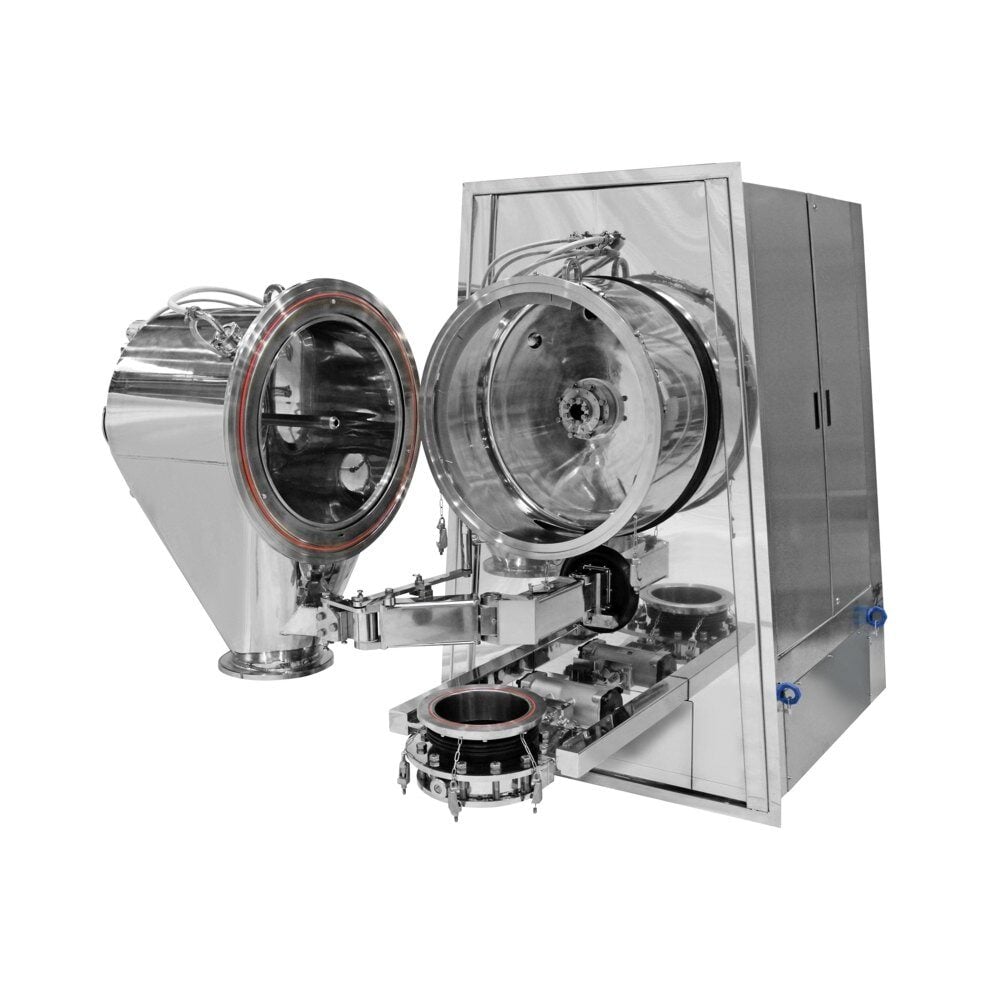

    F2-1 (1)

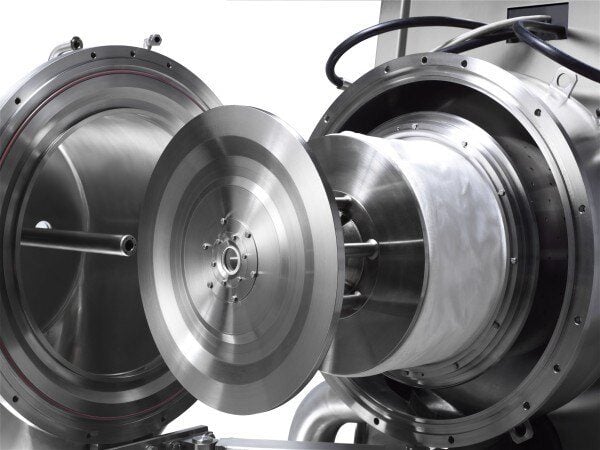

    Inverting-filter-centrifuge-F-filter (1)

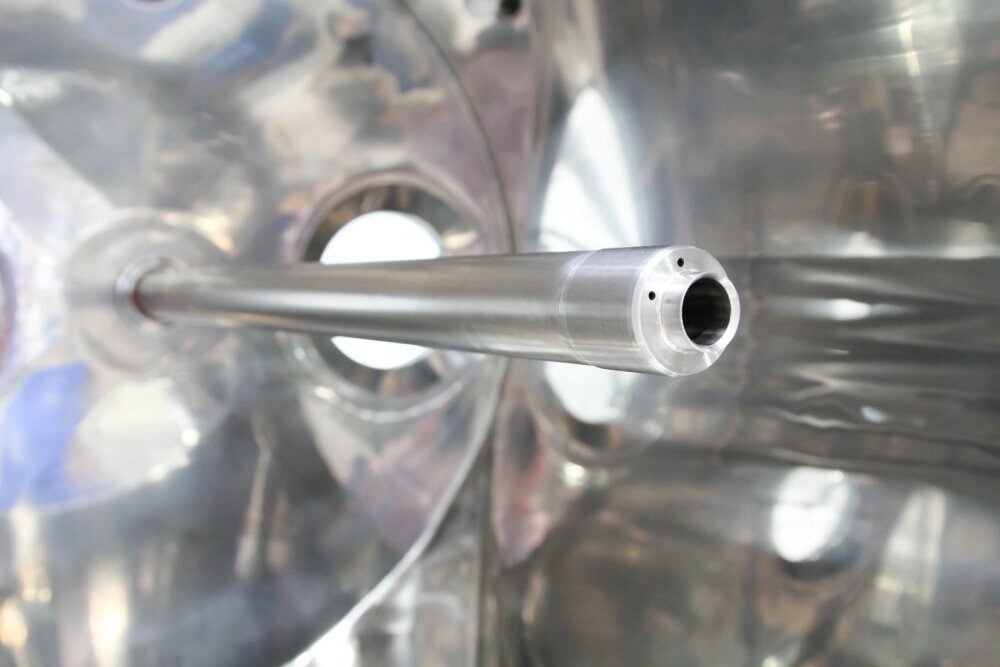

    F2_Füllrohr_Mini-scaled (1)

    The HEINKEL inverting filter centrifuge of the Series F requires minimum installation space and is characterized by an integrated clean room design. It is suited for use with difficult to filter products and characterized by hermetically closed design and the fully automated, continuous operation.
    advantages-block-icon

    Advantages

    • Advanced development of the proven inverting filter centrifuge Series HF
    • Larger basket volume as well as higher centrifugal forces in comparison with Series HF
    • Easy installation, especially in clean rooms because of outer smooth surfaces and machine contours
    • Inerting system and all junction boxes accommodated in the machine housing
    • Easy access to machine housing via maintenance doors at three sides

    Technical Data

    Centrifuge type Basket diameter (mm) Filter area (m²) Nominal volume
    (l)    		 Max. Filling (kg) Max. Speed (1/min) Centrifugal force (x g)
    F1 450 0.30 27 34 2,700 1,840
    F2 560 0.50 51 64 2,400 1,800
    F3 710 0.80 103 130 2,000 1,600
    F4 Duplex 900 1.25 212 265 1,850 1,700
    F4 Hastelloy 900 1.25 212 265 1,660 1,400

    Dimensions and Weights

    Centrifuge type Length (mm) Width (mm) Height (mm) Weight (kg)
    F1 2,500 1,250 2,000 3,250
    F2 2,800 1,350 2,250 3,800
    F3 3,500 2,000 2,700 7,600
    F4 4,000 2,200 3,000 11,000
