    Inverting Filter
    Centrifuge HF

    Series HF 300.1 - HF 1300.1

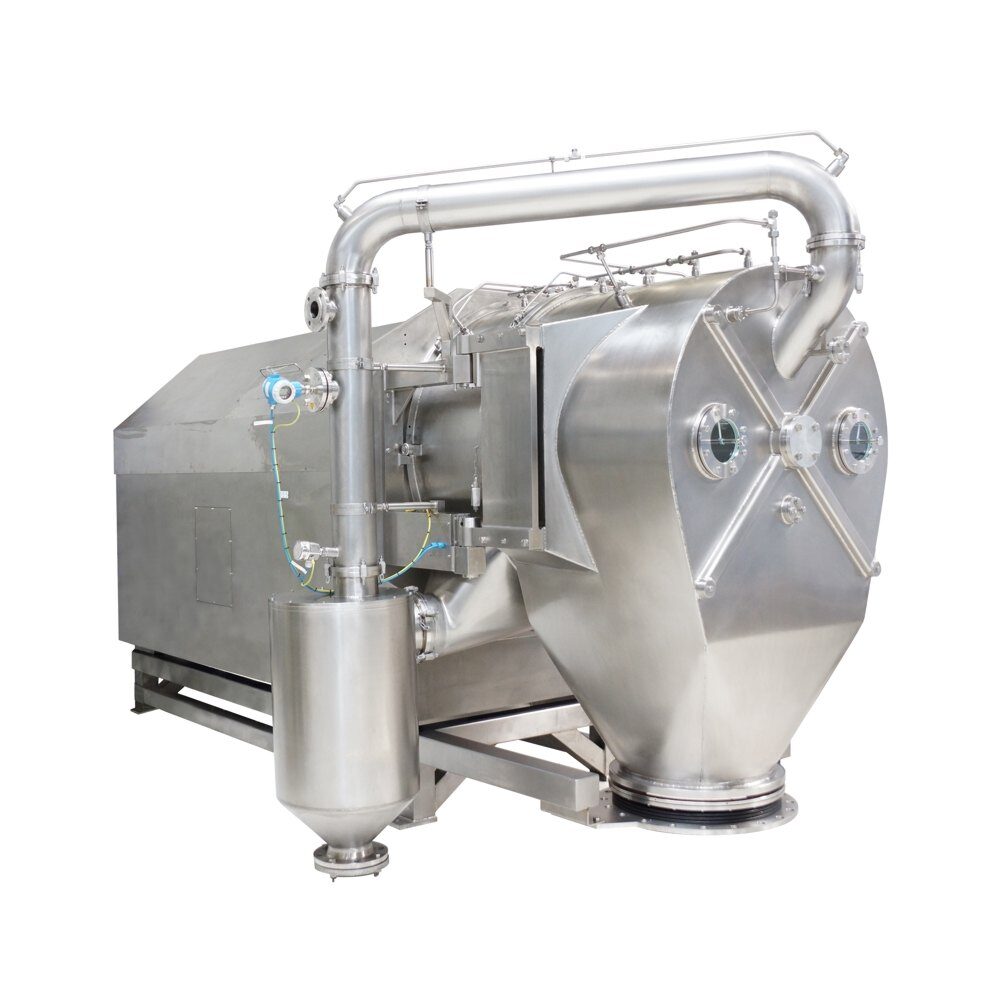

    HF1000.1-1

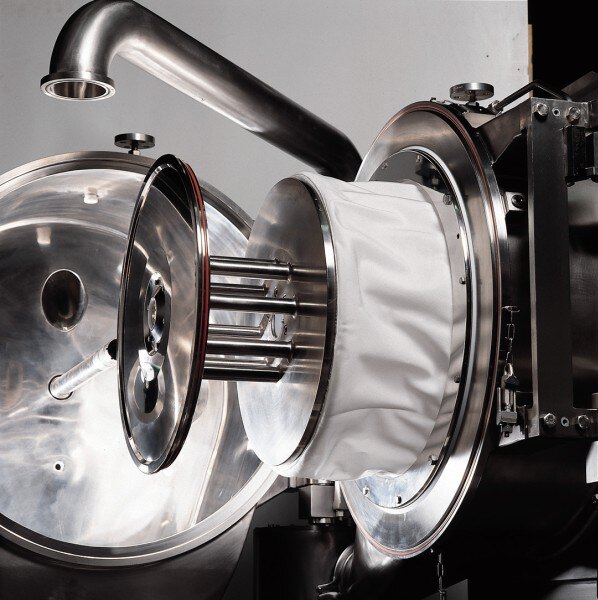

    Inverting-filter-centrifuge-HF-filter

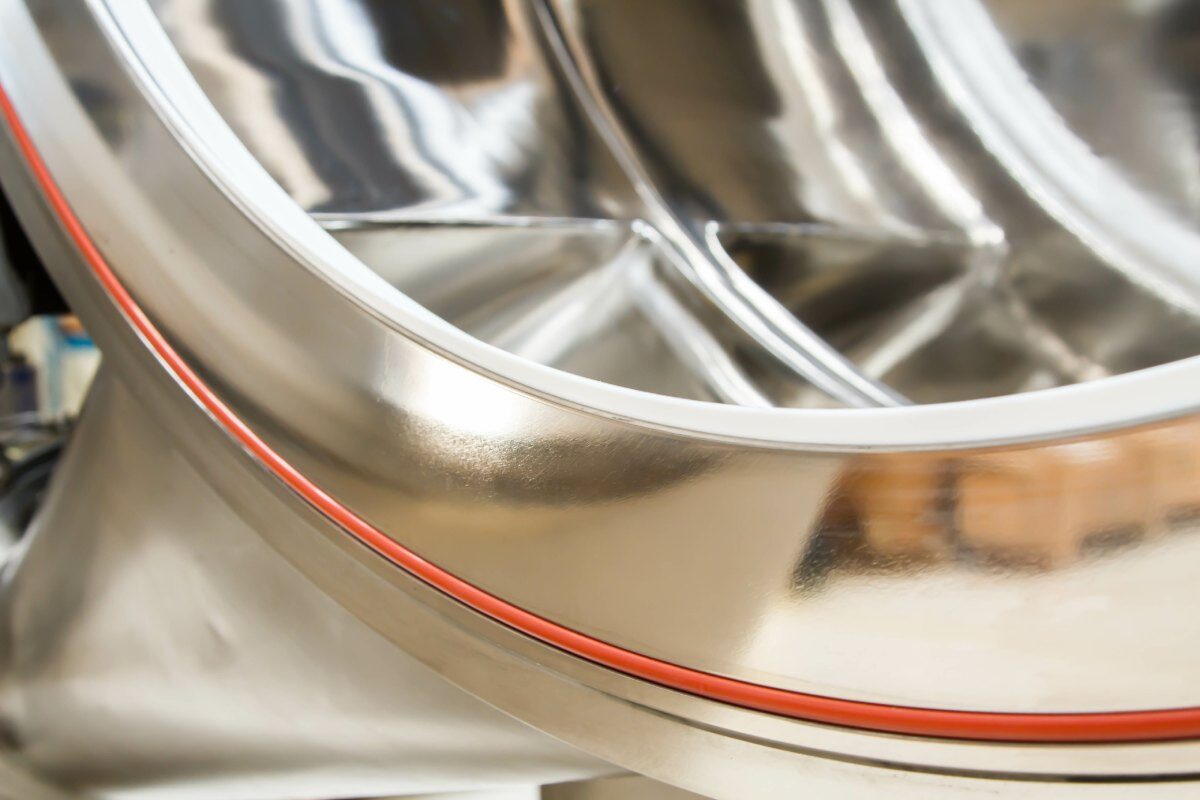

    HF600.1_Dichtung

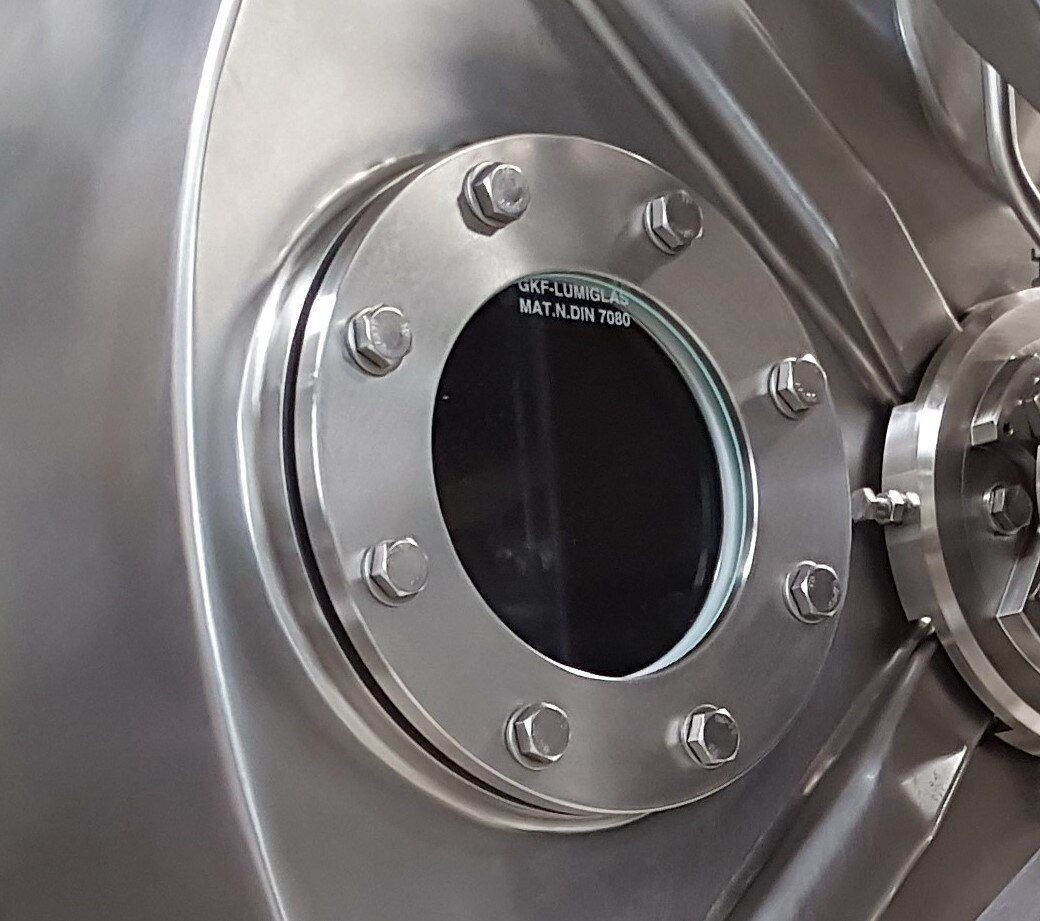

    HF_Ausschnitt_Schweißnaethe

    Based on its gentle product discharge leaving no residual heel and therefore the possibility of thin cake filtration, the HEINKEL inverting filter centrifuges of the Series HF are ideally suited for use with diffcult to filter products. They are characterized by hermetically closed design and the fully automated, continuous operation.
    advantages-block-icon

    Advantages

    • Proven, robust design
    • Design matches with requirements in the chemical and pharmaceutical industry

    • Best choice for demanding products

    • Residual heel free product discharge and minimum installations in housing and basket, thus optimal for high potent API products with highest possible product yield

    • Considerable residual moisture reduction in respect to conventional filtration by pressure added centrifugation (PAC) possible

    Technical Data

    Centrifuge type Basket diameter (mm) Filter area (m²) Nominal volume
    (l)    		 Max. Speed (1/min) Centrifugal force
    (x g)
    HF 300.1 300 0.1 6.5 3,000 1,500
    HF 450.1 450 0.31 26 2,300 1,320
    HF 600.1 600 0.41 52 1,940 1,260
    HF 800.1 800 0.85 120 1,600 1,140
    HF 1000.1 1,000 1.26 200 1,270 900
    HF 1300.1 1,300 2.04 350 1,000 720

    Dimensions and Weights

    Centrifuge type Length
    (mm)    		 Width
    (mm)    		 Height
    (mm)    		 Weight
    (kg)
    HF 300.1 2,500 1,000 1,100 1,400
    HF 450.1 3,092 1,650 1,720 3,250
    HF 600.1 3,092 1,650 1,720 3,500
    HF 800.1 4,100 1,900 2,250 6,200
    HF 1000.1 5,100 2,300 2,600 8,900
    HF 1300.1 5,950 2,600 3,300 10,700
