New Filter/Dryer Rental Unit

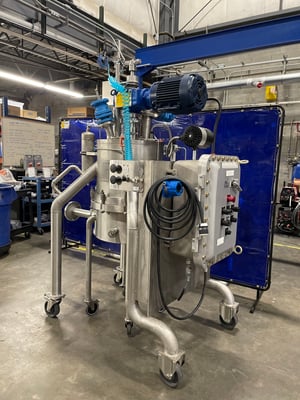

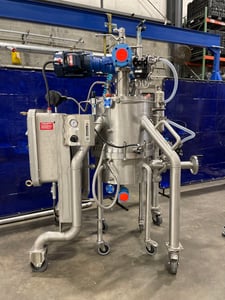

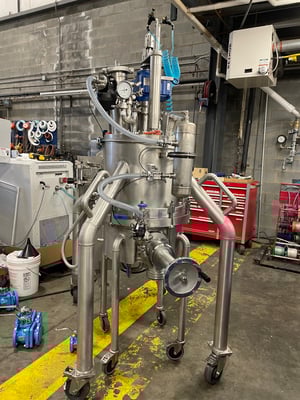

A new mobile 0.17m² Hastelloy Rolab filter/dryer that has been recently added to our rental fleet. If you are looking for an opportunity to test your new process on a pilot-scale semi-automated filter/dryer, this vessel could be a great option for you!

The RoLab can also be integrated in normal manufacturing processes for the production of small batches of active ingredients or intermediates, including:

• Filtration under pressure
• Smoothing of the filter cake
• Displacement washing
• Reslurry washing
• Drying
• Discharge of the dried product
• WIP-Cleaning

Rental Unit Specifications:

• Capacity: Total 122L, Solids 44L
• MOC: Hastelloy wetted parts, SS for non-process exposed parts
• Electrical Area Classification: Class 1 Div 1
• Operating Temperature Range: -10/+150C
• Operating Pressure Range: Full Vacuum/ +6bar
• Approximate dimensions: 2.0m x 0.97m x 2.27m
• Utility hook-ups needed:
  • Clean dry air for pneumatic functions
  • Nitrogen for process gas
  • 120V electrical
  • Temperature Control Loop for vessel jacket: works with glycol, tempered water, jacket rated from temp range -10/+200C

For rental inquires, contact us online and reference the RoLab rental unit.
