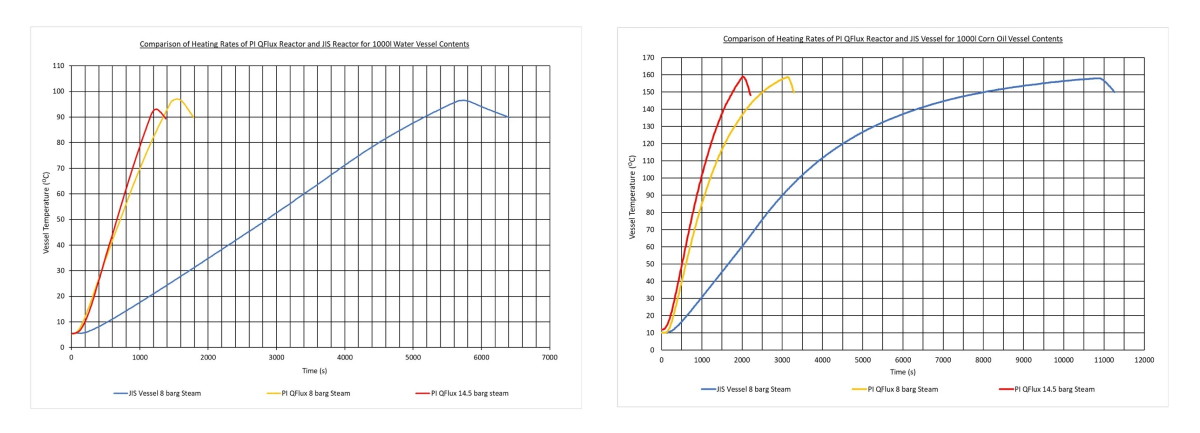

The two charts above show the comparative span times for the PI QFlux Reactor vs a conventional glass lined batch reactor to heat between two pre-determined set points.
- Testing was performed in collaboration with Kobelco Eco Solutions in a purpose built test center in July 2022.
- The vessel contents were 1000l of water and corn oil respectively for the two charts.
- The blue and orange curves show the relative performance of the conventional and PI QFlux reactor when the site service conditions were identical.
- The red curve shows the performance of the PI QFlux when a higher steam temperature was used.
Download our White Paper to see the full report on the performance testing
De Dietrich Process Systems is in partnership with PTSC to provide this revolutionary technology to the North American market. For more information about our agreement, read our press release.
