HEINKEL Pilot Unit Filter Dryer

In compliance with cGMP and FDA guidelines, also available in steam sterilizable and/ or aseptic designs

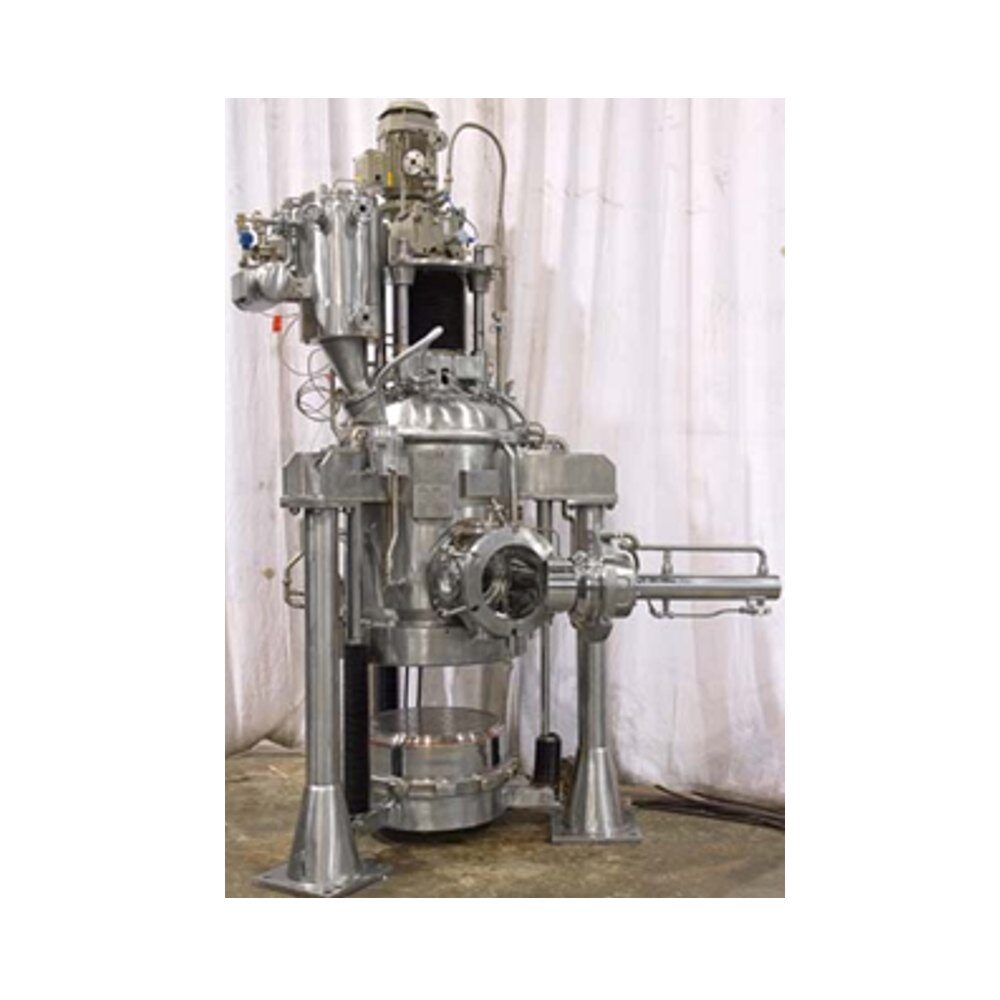

Small pilot units are skid mounted including all drives, the required instrumentation and the hydraulics

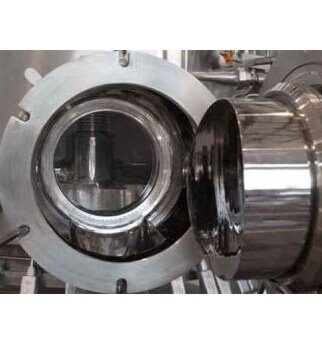

For easy access larger pilot units are mounted on a support column or post; the vessel base is mounted on a separate column to lower the base and displace it to the side
Vessel base can be designed interchangeable for conversion to a conical bottom dryer or a Nutsche filter dryer respectively

Technical Data

Product wetted materials	Stainless steels, Nickel based alloys such as Hastelloy C 22 or Alloy 59, Titanium, etc.,
Sealing materials	PTFE gaskets, O-Rings in FFKM or FEP encapsulated
Area classification	EU-Type Examination Certificate INERIS the 2014/34/EU Directive, or with electrical components UL approved for operation in a Class 1, Division 1 or 2, Groups C&D environment
Controls	Control cabinet with PLC, HMI with touch screen, MCC, interface for DCS
Guidelines	Calculation, design and manufacture in accordance with the Pressure Equipment Directive (PED) 2014/68/EU and /or the ASME pressure vessel code, Section VIII, with U-Stamp
Filter area	0.03 to 0.2 m²
Slurry volume	8 – 100 liters
Design temperature	-10 to 150°C (14 to 302°F) or per requirements
Design pressure	-1 to +4 barg (FV to 60 psig) or per requirements
Heated areas	All product wetted components, including agitator
Accessories	Dust filter with automatic back cleaning, sampling valve, CIP system, sight glass with vessel light, vacuum system with condenser, heating and cooling unit etc.
