The Powder Pump is a core technology of our solids handling solutions. To increase its versatility, DDPS offers various options that provide additional capabilities beyond its standard design. Whether you’re looking for more mobility, static discharge prevention or improved automation, we have the design options to meet your process needs.

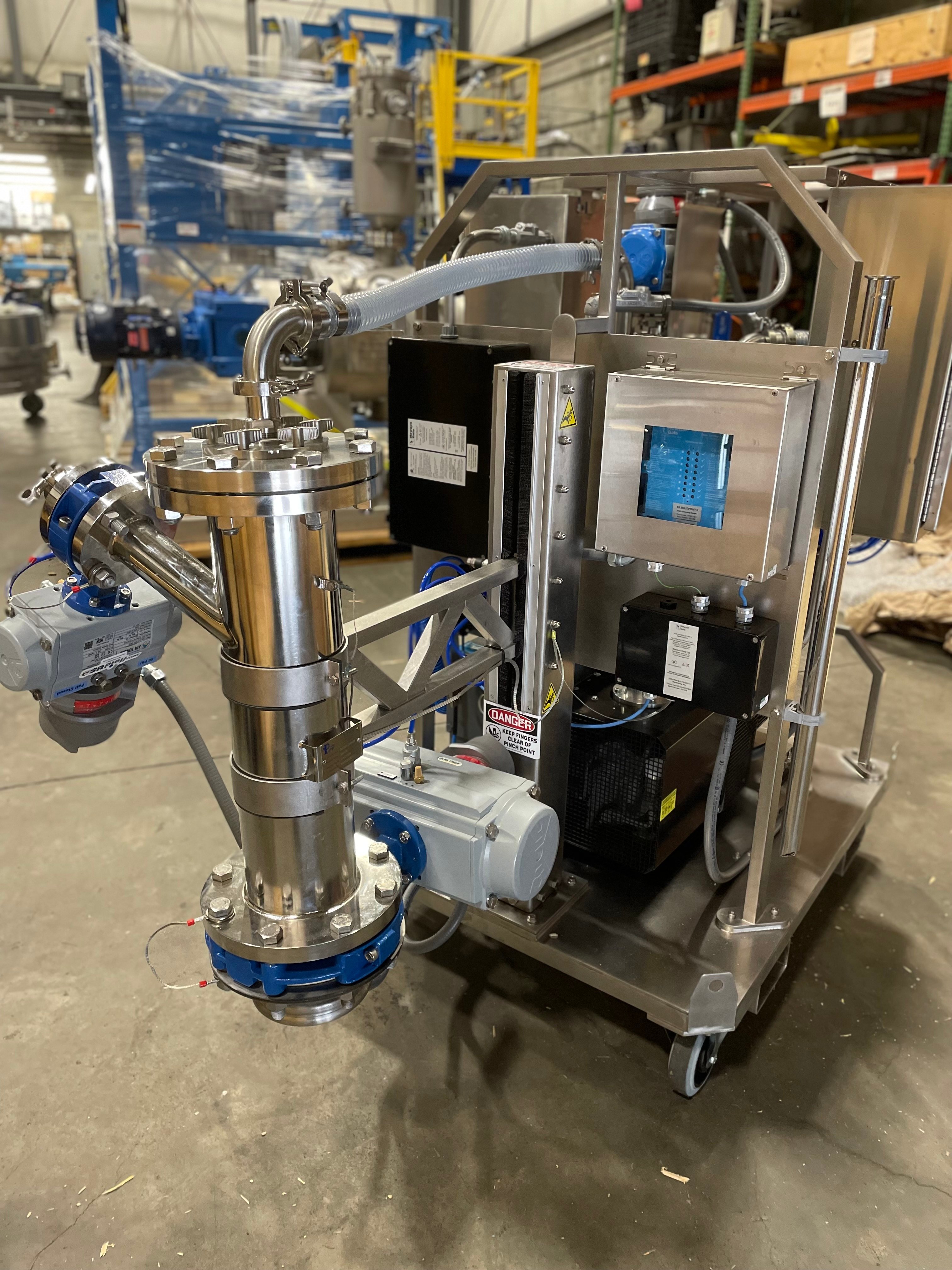

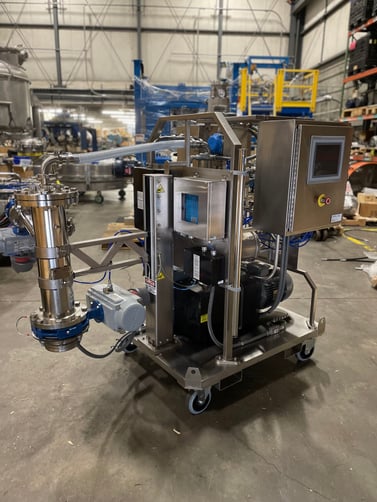

The Mobile Powder Pump System allows an end user to convey solids into multiple locations using only a single powder handling system. The complete system is mounted on a mobile trolley and includes a vacuum pump, controls, process valves and a Powder Pump unit. Compressed gas and electrical utilities are made via two quick and easy connections.
With this information, along with a powder characterization analysis, our engineers can more thoroughly assess the transfer properties of your material and provide the appropriate equipment design, control functionality, and system layout for optimized performance.

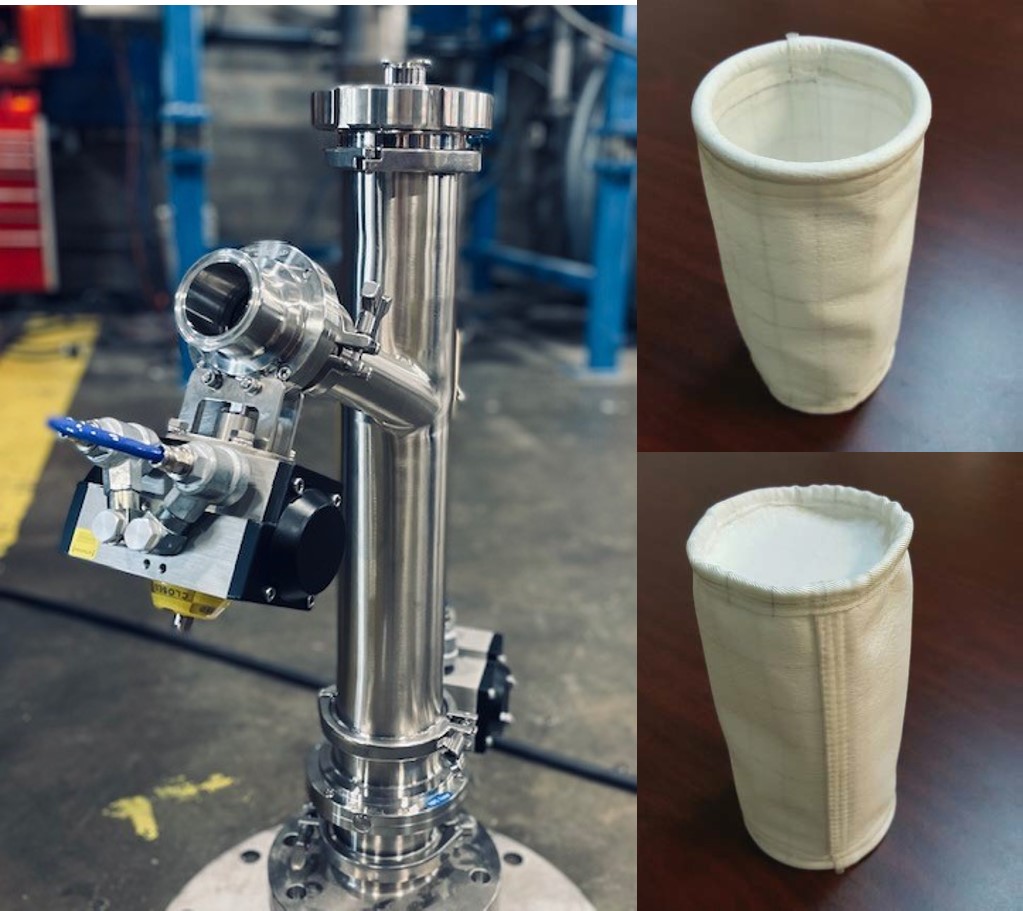

Our Powder Pump pharma filters are made with a highly durable, anti-static polyester felt substrate and FDA-compliant filtration membrane suitable for pharmaceutical applications. The media is designed to dissipate static charges that might develop during solids conveying, thus preventing electrostatic discharge and possible deflagration that could damage equipment or result in personal injury.
Powder transfer is a critical component of many processes, but it is often just one part of the full spectrum of an operation. DDPS can provide a range of system capabilities including batch weight and dosing rate control that, when coupled with a variety of peripheral components, will provide a complete package solution, saving you the time and hassle of working with multiple sources while maximizing overall system performance.

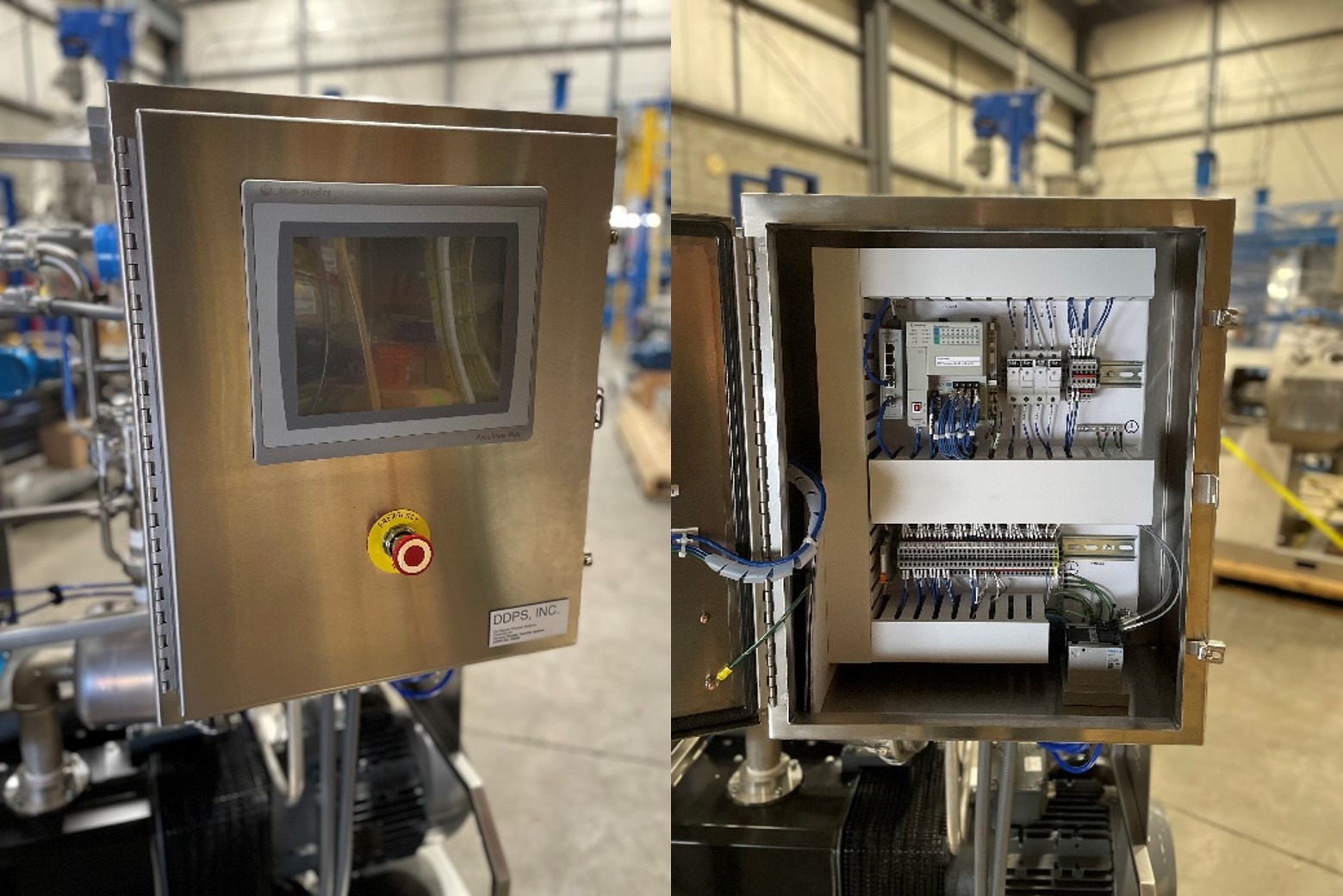

Simple, pneumatic logic-based controls with only a single, compressed gas connection allows operation in Class 1, Division 1 areas. Standard operating sequences are easily adjusted on the panel front and an optional Wash-in-place control function is available.
Advanced control features including manual control of all valves, and monitoring of solids’ level, conveying pressures, batch weight and system grounding are available with a PLC / HMI based system. Panel-mounted HMI ratings restrict their use to Class 1, Division 2 areas.
DDPS’ integrated systems approach takes project management and execution to the next level. After completing FAT and SAT protocols, and providing additional validation services that might be required, we see your project beyond installation and start-up by offering ongoing support that extends throughout the life of your system.
DE DIETRICH PROCESS SYSTEMS is the leading global provider of Process Equipment, Engineered Systems and Process Solutions for the fine chemical, chemical and pharmaceutical industry.
