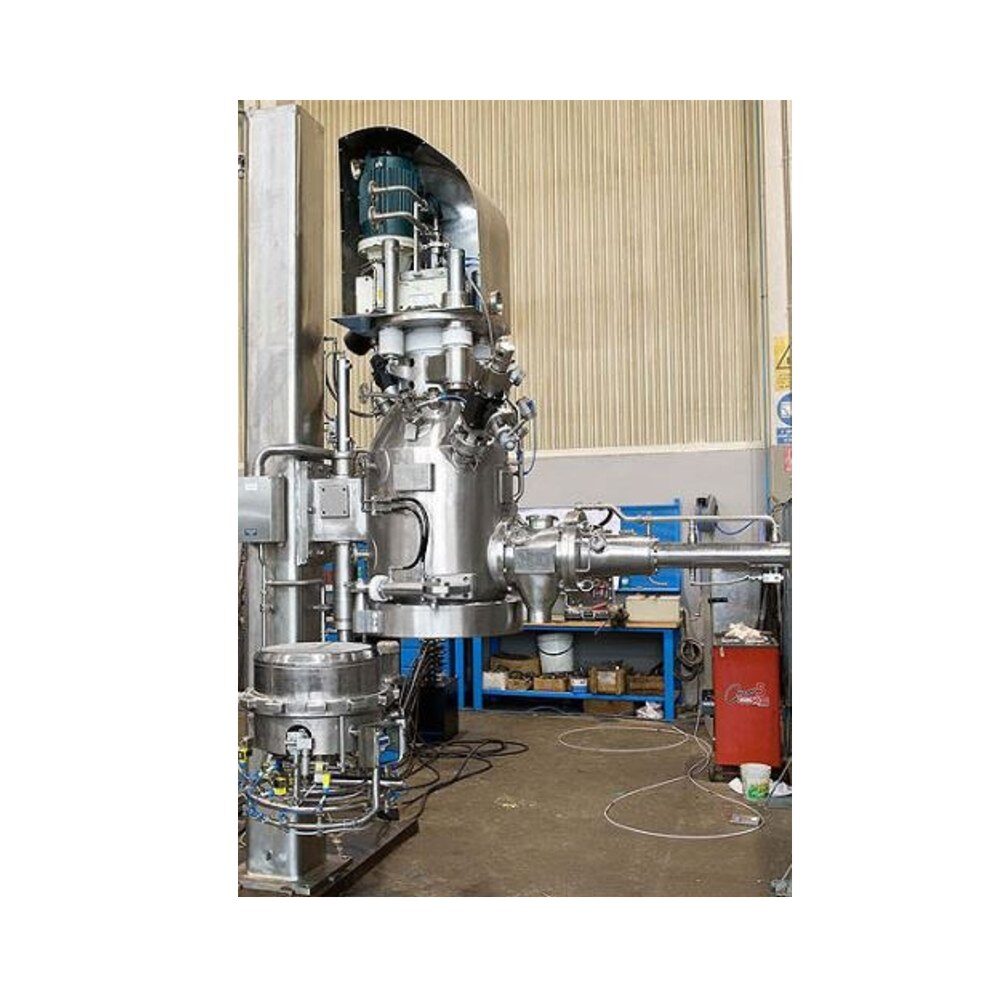

HEINKEL Sterilizable Filter Dryer

With Cleaning-In-Place (CIP) and Sterilization-In-Place (SIP) systems designed for the automatic cleaning and disinfecting of the equipment
Steam sterilizable filter dryer design assures steam reaches all parts of the filter dryer in contact with the product and air is not trapped in the unit during sterilization
In compliance with cGMP and FDA guidelines, with vessel interior and all associated piping designed to prevent product adherence and to facilitate cleanability, fully drainable for clearance of condensate during the heating process, with aseptic design for flanges, seals, valves etc.
Double mechanical seals, externally interchangeable, dry running with debris well, steam sterilizable

Technical Data

Product wetted materials	Stainless steels, Nickel based alloys such as Hastelloy C 22 or Alloy 59, Titanium, etc.,
Sealing materials	PTFE gaskets, O-Rings in FFKM or FEP encapsulated
Area classification	EU-Type Examination Certificate INERIS the 2014/34/EU Directive, or with electrical components UL approved for operation in a Class 1, Division 1 or 2, Groups C&D environment
Controls	Control cabinet with PLC, HMI with touch screen, MCC, interface for DCS
Guidelines	Calculation, design and manufacture in accordance with the Pressure Equipment Directive (PED) 2014/68/EU and /or the ASME pressure vessel code, Section VIII, with U-Stamp
Filter area	0.13 to 6 m²
Slurry volume	55 – 6,000 liters
Design temperature	-10 to 150°C (14 to 302°F) or per requirements
Design pressure	-1 to +4 barg (FV to 60 psig) or per requirements
Heated areas	All product wetted components, including agitator
Accessories	Dust filter with automatic back cleaning, sampling valve, CIP system, sight glass with vessel light, vacuum system with condenser, heating and cooling unit etc.
