    Top Discharge
    Centrifuge Chemical

    Chemical Design - Series V 630 - 1600 TC

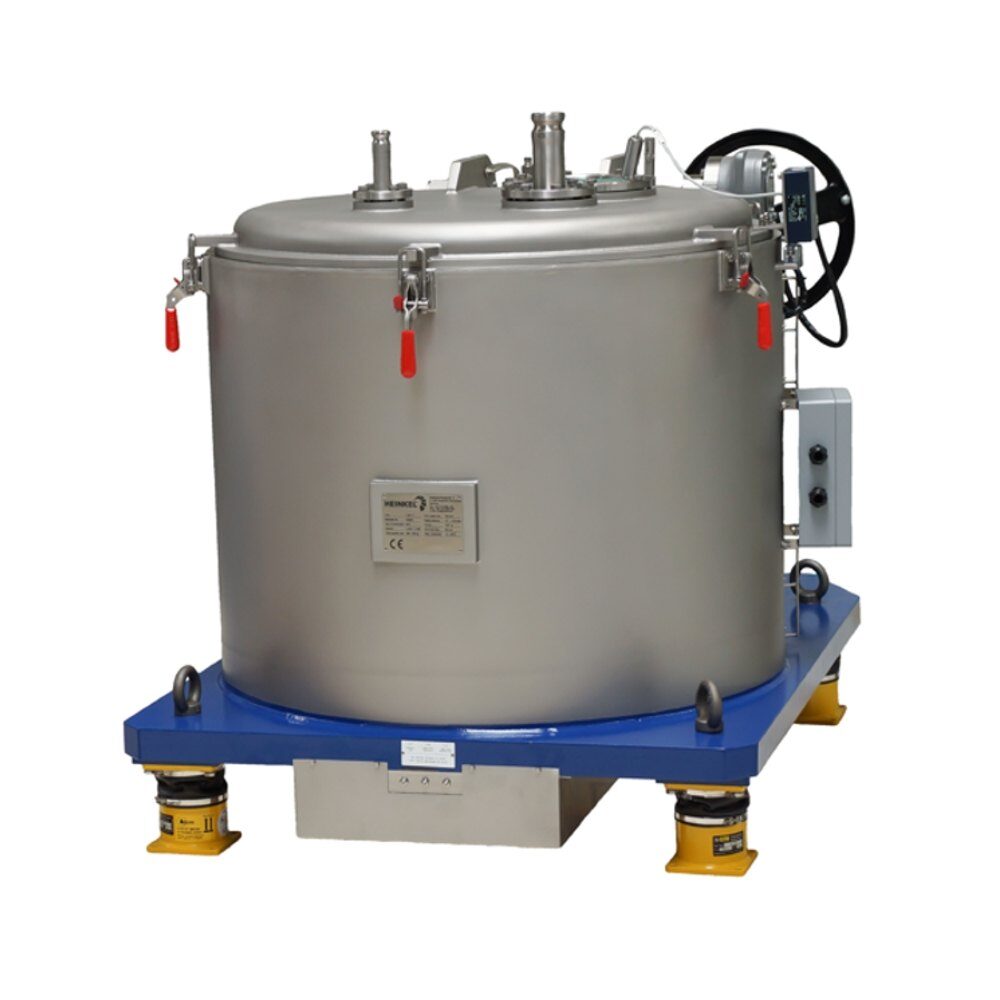

    V800TC-1 (1)

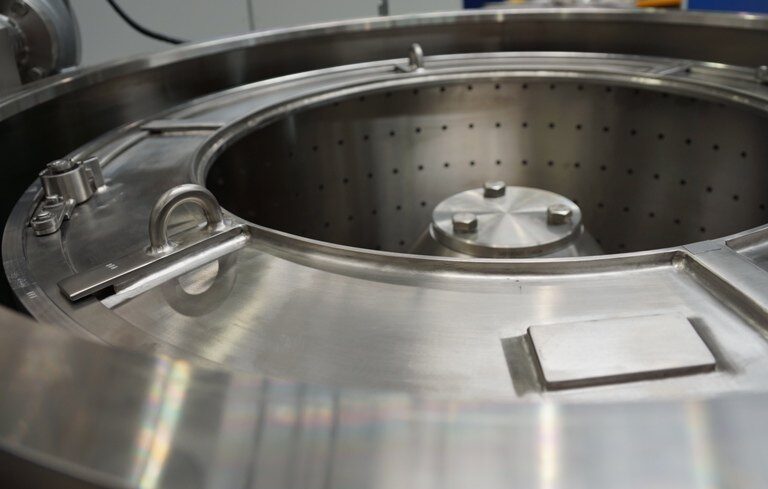

    HEINKEL-Top-discharge-centrifuge-Chemical-design-basket (1)

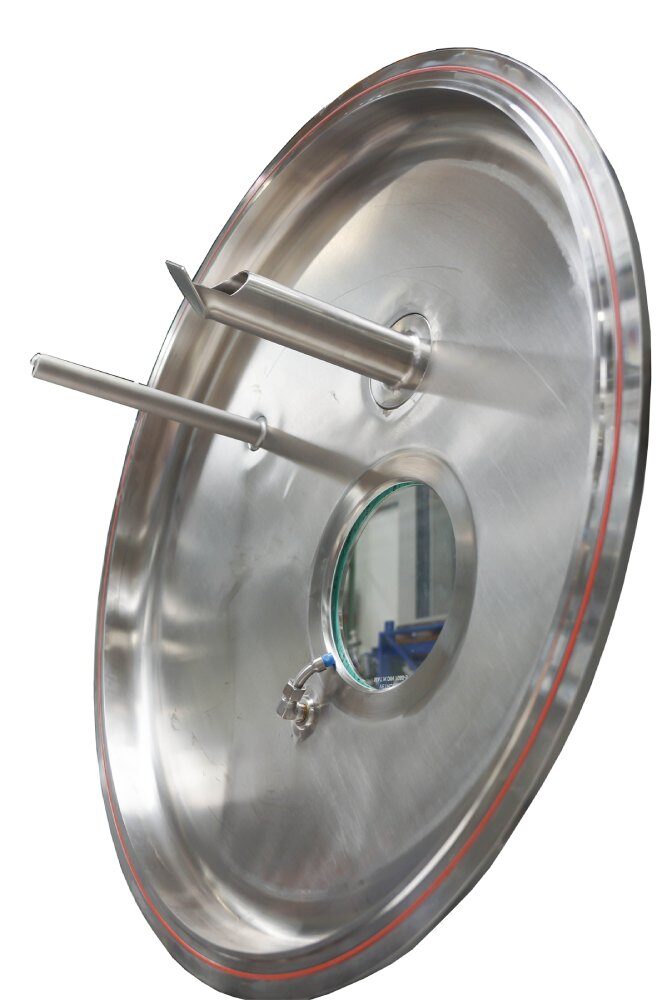

    V800TC_Deckel_Mini (1)

    The classical HEINKEL top discharge centrifuges are a cost-effective alternative in chemical manufacturing.

    The centrifuge can be easily adapted to the product characteristics and is therefore suitable for companies that manufacture a variety of products in small to large batches.
    advantages-block-icon

    Advantages

    • Flexible adaptation for difficult to filter products
    • Lossless filter cake discharge
    • Gentle solids discharge without particle destruction
    • Excellent washing and extraction effect
    • Simple centrifuge design
    • Reliable system for removal of the filter bag
    • Rugged and simple system for the detachable border ring

    Technical Data

    Centrifuge type Basket diameter (mm) Basket depth (mm) Filter area (m²) Nominal volume (l) Max. Filling (kg) Max. Speed (1/min) Centrifugal force (x g)
    V 630 TC 630 400 0.79 63 76 1,900 1,271
    V 800 TC 800 630 1.26 160 200 1,500 1,006
    V 1000 TC 1,000 630 1.98 250 315 1,200 805
    V 1250 TC 1,250 630 3.14 400 626 950 631
    V 1600 TC 1,600 800 4.02 820 1,025 750 503

    Dimensions and Weights

    Centrifuge type Length (mm) Width (mm) Height
    (mm)    		 Weight
    (kg)
    V 630 TC 1,420 950 1,250 1,200
    V 800 TC 1,570 1,100 1,370 1,700
    V 1000 TC 1,800 1,300 1,370 2,400
    V 1250 TC 2,100 1,550 1,400 3,500
    V 1600 TC 2,500 1,750 1,650 5,900
