    Top Discharge
    Centrifuge Pharma

    Pharma Design - Series V 630 - 1600 TP

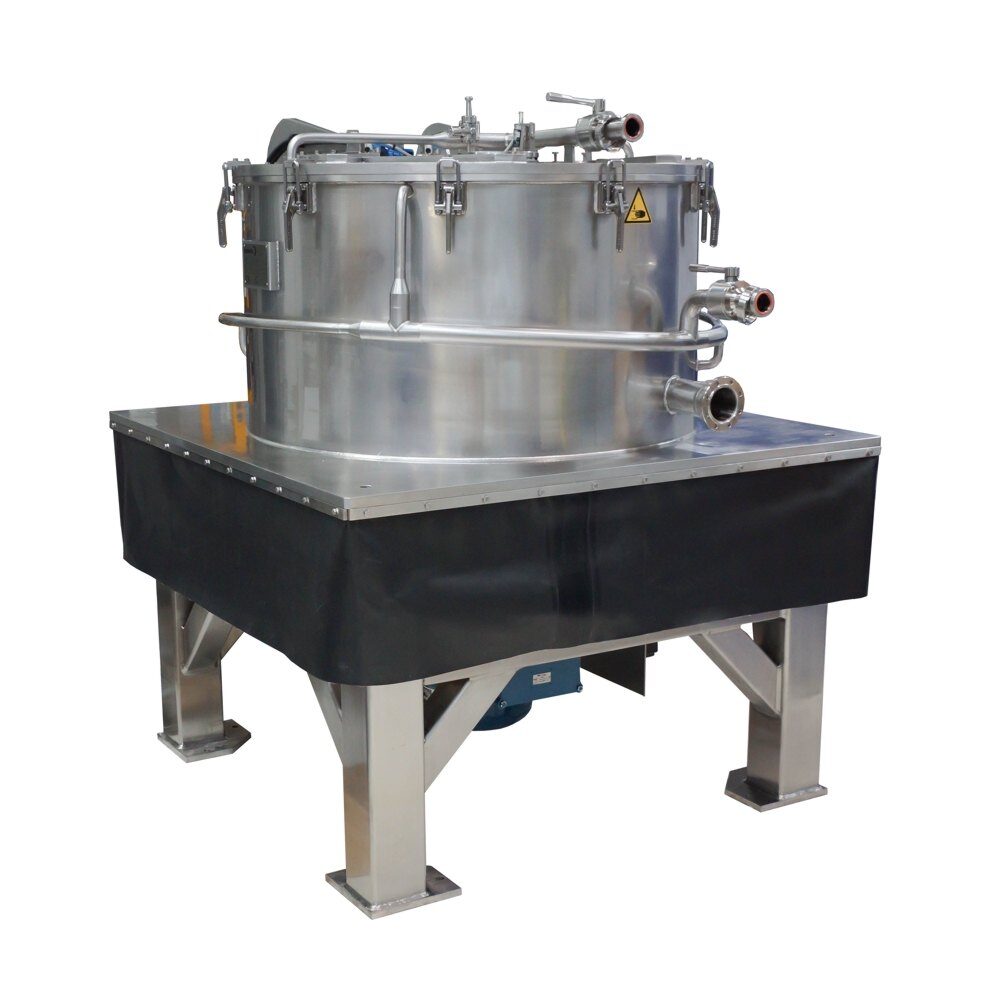

    V1000TP (1)

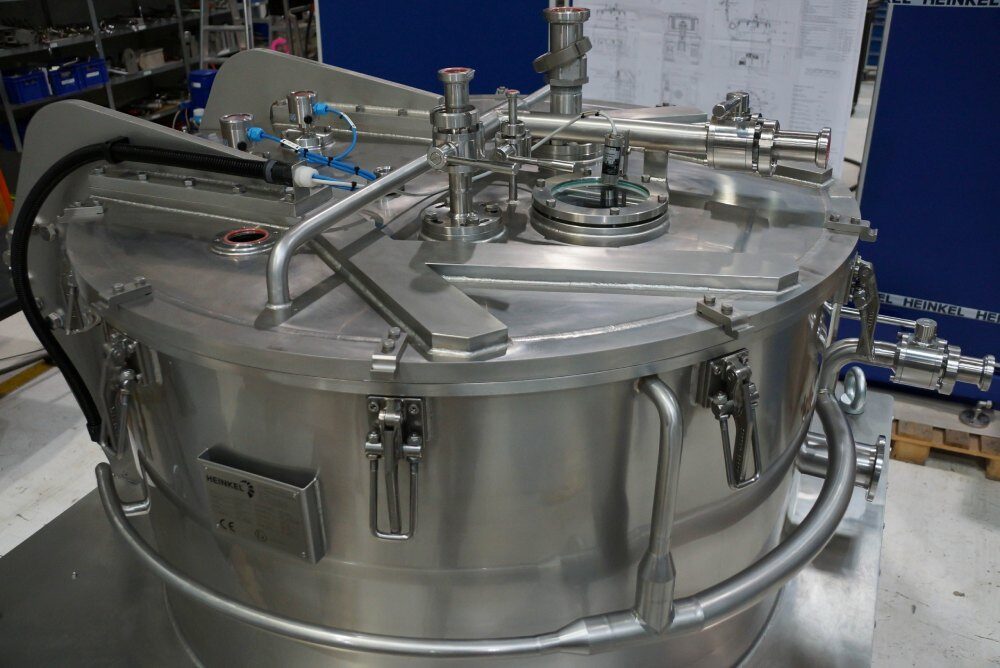

    Deckel-scaled (1)

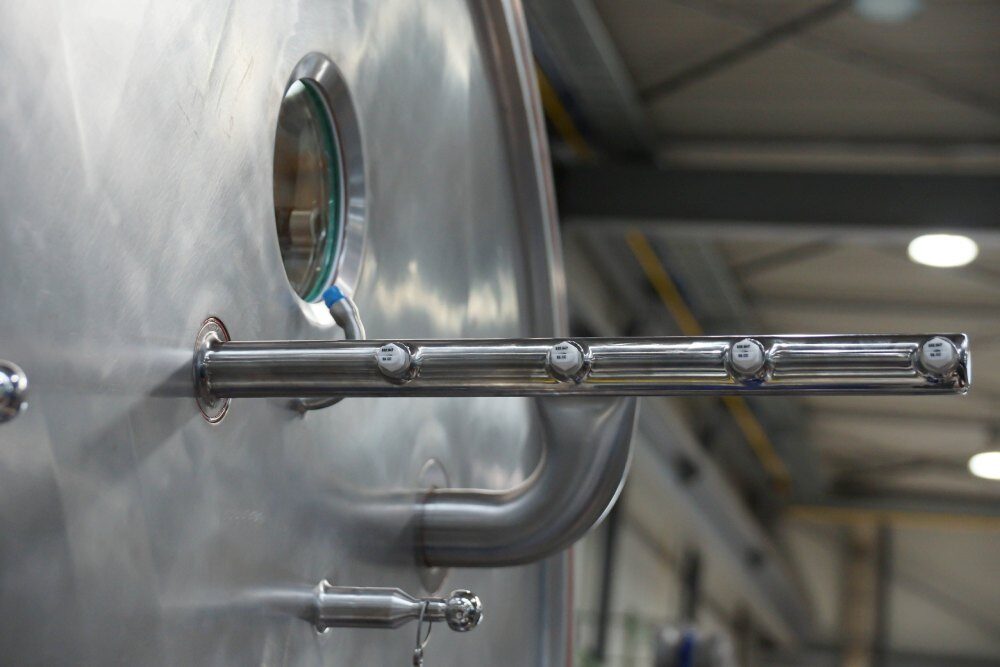

    Restschichtentfernung-scaled (1)

    The classical HEINKEL top discharge centrifuges are a cost-effective alternative in the pharmaceutical production.
    The centrifuge can be easily adapted to the product characteristics and it is therefore suitable for companies that manufacture a variety of products in small to large batches.
    advantages-block-icon

    Advantages

    • Flexible adaptation for difficult to filter products
    • Lossless filter cake discharge
    • Gentle solids discharge without particle destruction
    • Automatic CIP cleaning
    • Easy accessibility of all machinery parts in contact with the product
    • Excellent washing and extraction effect
    • Simple centrifuge design

    Technical Data

    Centrifuge type Basket diameter (mm) Basket depth (mm) Filter area (m²) Nominal volume (l) Max. Filling (kg) Max. Speed (1/min) Centrifugal force (x g)
    V 630 TP 630 400 0.62 48 60 1,900 1,271
    V 800 TP 800 630 1.01 103 128 1,500 1,006
    V 1000 TP 1,000 630 1.57 200 250 1,200 805
    V 1250 TP 1,250 630 2.47 394 492 950 631
    V 1600 TP 1,600 800 4.02 820 1025 840 503

    Dimensions and Weights

    Centrifuge type Length (mm) Width (mm) Height (mm) Weight (kg)
    V 630 TP 2,340 1,260 1,130 1,200
    V 800 TP 2,520 1,430 1,400 1,700
    V 1000 TP 2,700 1,630 1,500 2,400
    V 1250 TP 2,980 1,880 1,600 3,500
    V 1600 TP 3,230 2,100 1,850 5,500
