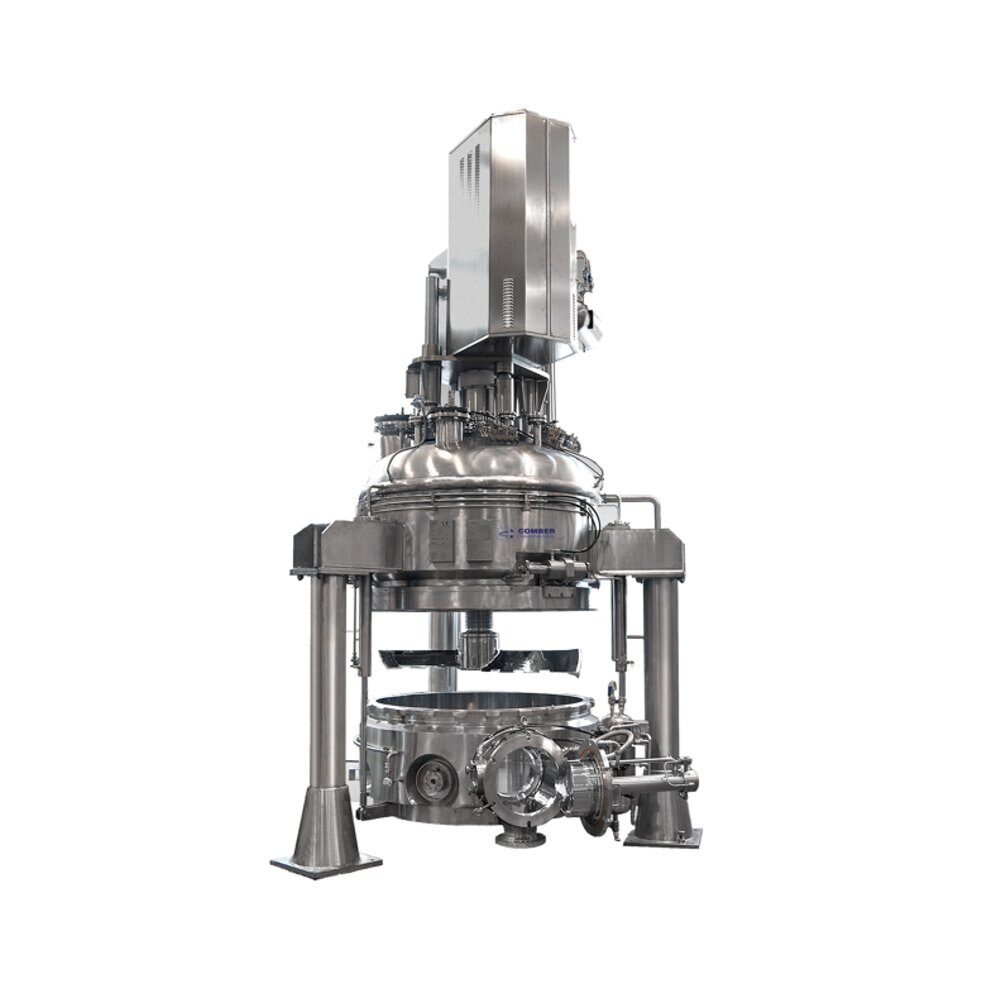

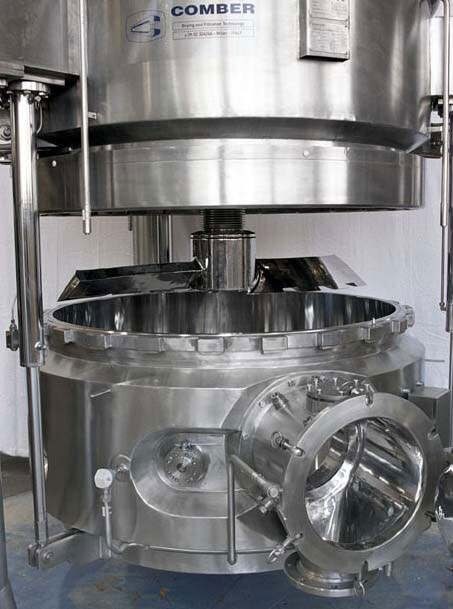

HEINKEL Vacuum Pan Dryer

In compliance with cGMP and FDA guidelines, also in aseptic/ steam sterilizable versions
Shortest possible drying times, suitable for the drying of sensitive, pasty, sticky and other "difficult" products such as those turning highly viscous during the drying process
Simultaneous axial and radial agitator movements permit uniform mixing of the entire product mass, without the formation of lumps or balls
Double mechanical seal, dry running contacting or non-contacting lift-off or liquid lubricated, externally interchangeable
Agitator supported by the top head, with the seal in contact with the vapors only

Technical Data

Product wetted materials	Stainless steels, Nickel based alloys such as Hastelloy C 22 or Alloy 59, Titanium, etc.,
Sealing materials	PTFE gaskets, O-Rings in FFKM or FEP encapsulated
Area classification	EU-Type Examination Certificate INERIS the 2014/34/EU Directive, or with electrical components UL approved for operation in a Class 1, Division 1 or 2, Groups C&D environment
Controls	Control cabinet with PLC, HMI with touch screen, MCC, interface for DCS
Guidelines	Calculation, design and manufacture in accordance with the Pressure Equipment Directive (PED) 2014/68/EU and /or the ASME pressure vessel code, Section VIII, with U-Stamp
Usable volume	100 – 6,000 liters
Design temperature	-10 to 150°C (14 to 302°F) or per requirements
Design pressure	-1 to +0.45 barg (FV to 6.5 psig), -1 to +6 barg (FV to 90 psig) in pressure proof version or per requirements
Heated areas	All product wetted components, including agitator shaft, arms and blades
Accessories	Dust filter with automatic back cleaning, sampling valve, CIP system, sight glass with vessel light, vacuum system with condenser, heating and cooling unit etc.
