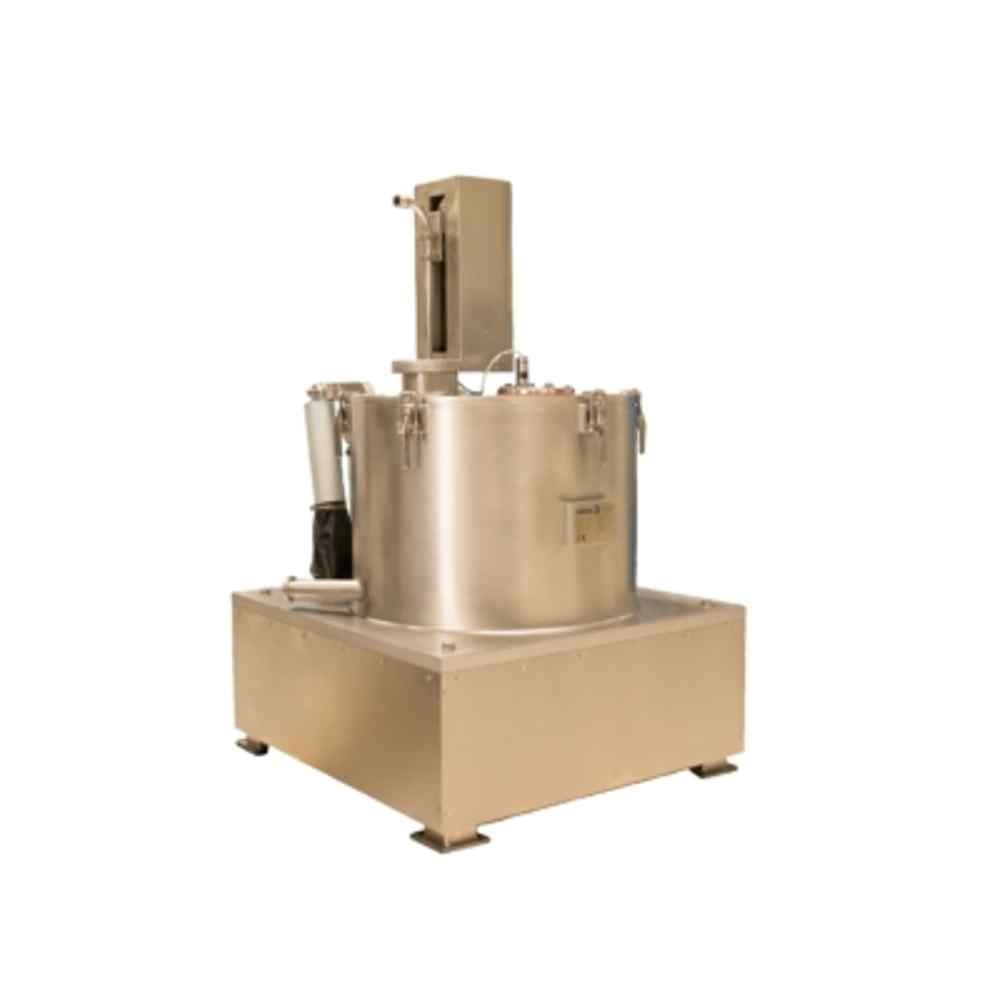

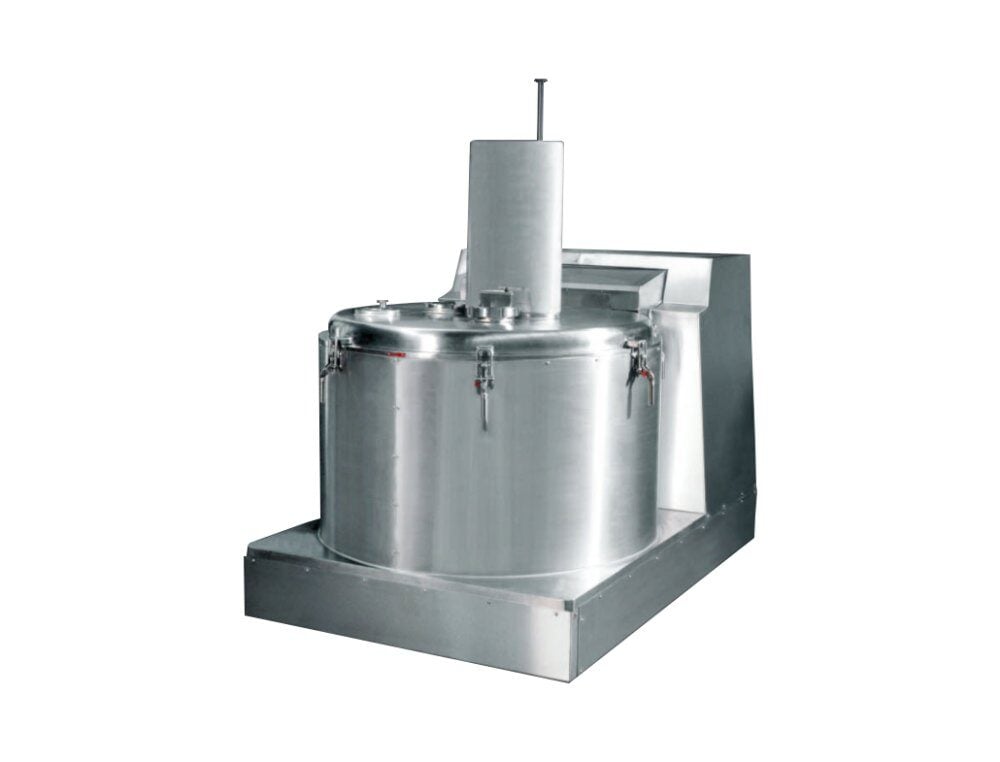

The HEINKEL vertical centrifuge plasma fractionation is specially designed for pharmaceutical applications, separating the different plasma fractions of the blood plasma during this process. Thanks to the high-quality centrifuge technology, the high requirements for reliable processes are fulfilled. The substances obtained subsequently find their important use in medicine.
The mode of operation of the HEINKEL vertical centrifuge plasma fractionation is characterised by an efficient and at the same time gentle treatment of the product, ensuring the optimum yield of the valuable raw material as well as maximum product purity and quality. Processing is done in a resource-saving way, including the steps cooling, filling, centrifugation, discharge of the product and cleaning. Due to the high-quality technology of the HEINKEL centrifuge, the customer benefits from numerous advantages for a reliable operation.
Centrifuge type |
Basket diameter (mm) | Basket depth (mm) | Filter area (m²) | Nominal volume (l) | Max. Filling (kg) | Max. Speed (1/min) | Centrifugal force (x g) |
V 630 TS | 630 | 315 | 0.62 | 50 | 62 | 3,000 | 3,170 |
V 800 TS | 800 | 420 | 1.06 | 100 | 125 | 2,590 | 3,000 |
Centrifuge type | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
V 630 TS | 1,150 | 1,100 | 1,680 | 2,200 |
V 800 TS | 1,950 | 1,300 | 2,060 | 3,200 |
