    Vertical Peeler
    Centrifuge Chemical

    Chemical Design - Series V 800 - 1600 BC

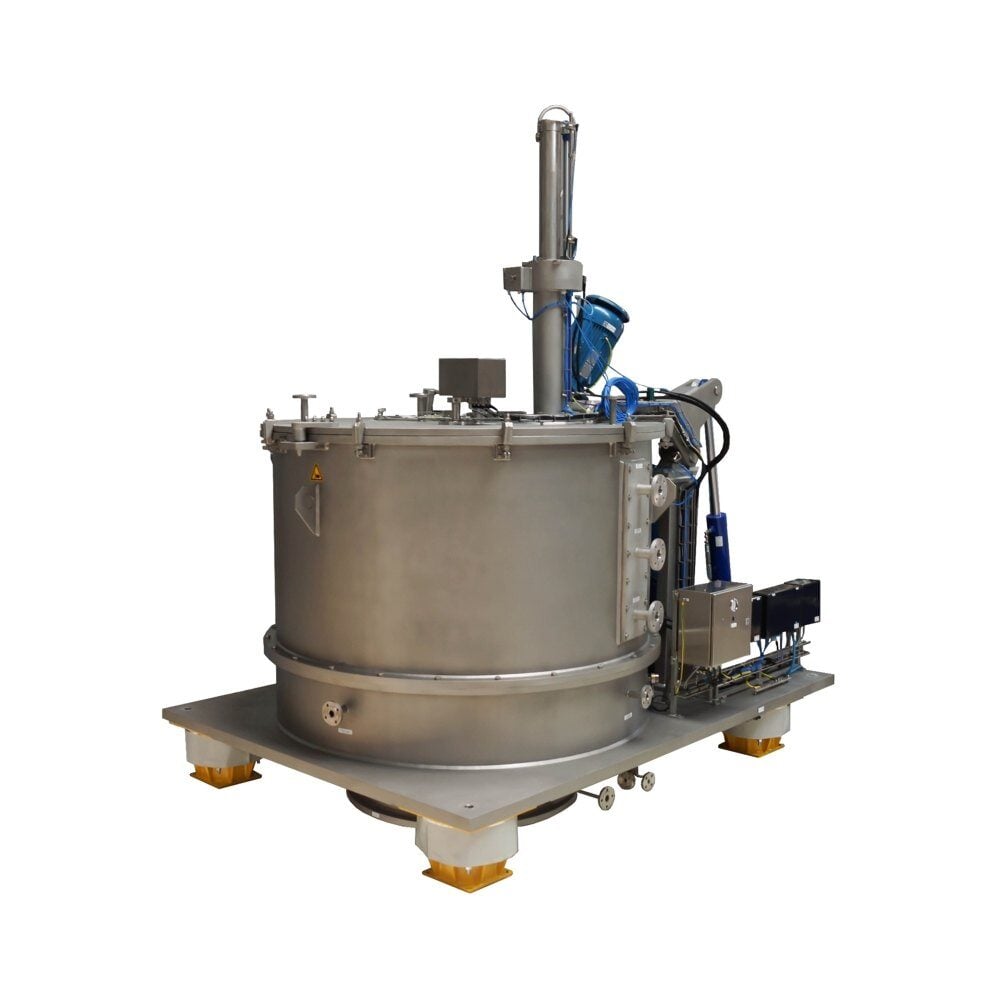

    V1600BC_freigestellt-2 (1)

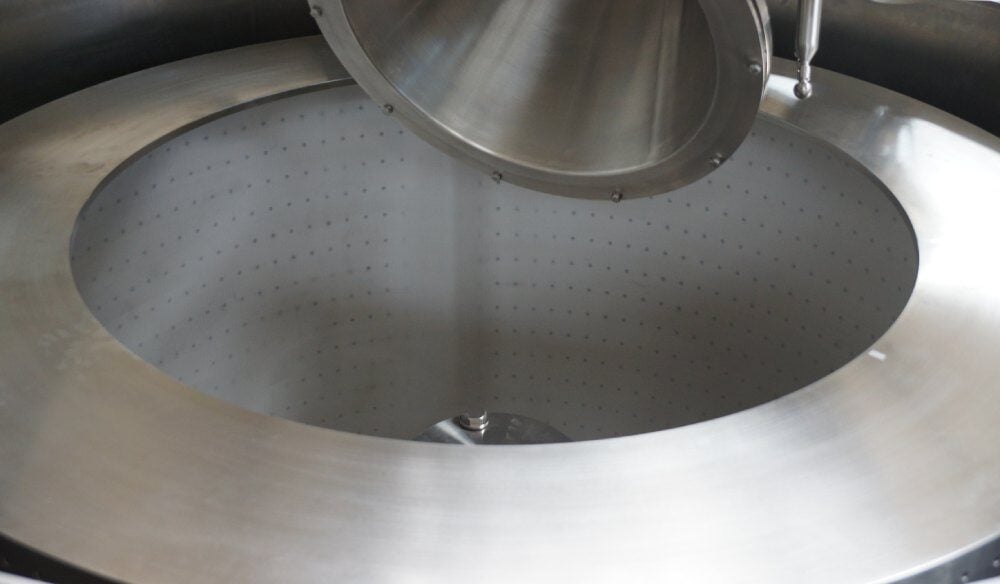

    V1600BC_Trommel (1)

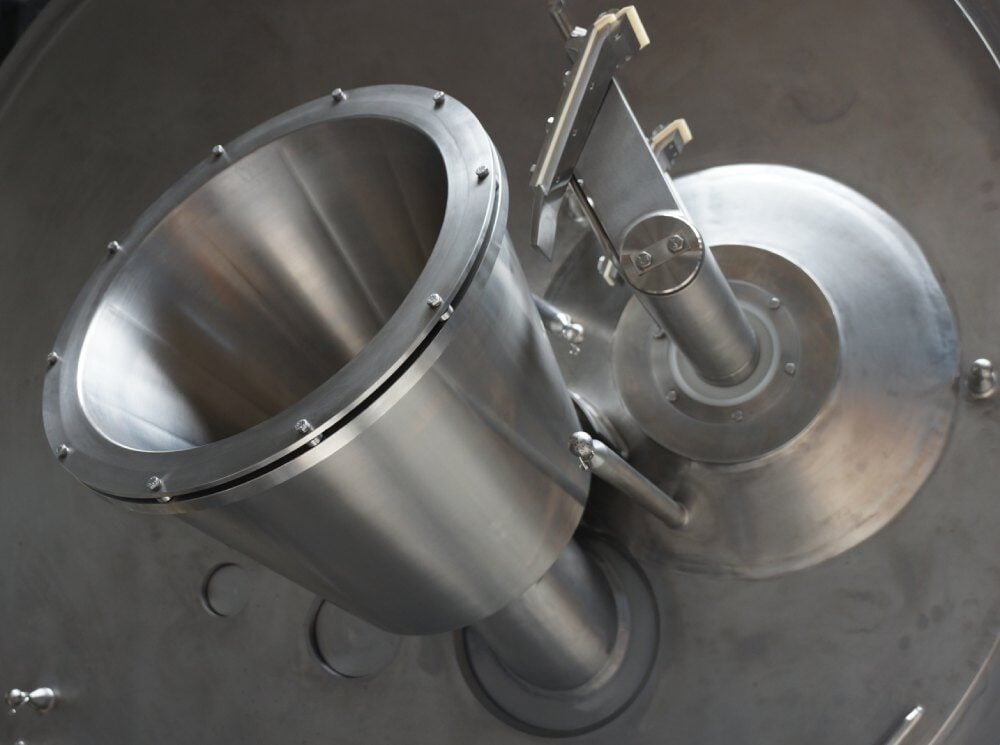

    V1600BC_Deckel (1)

    The vertical peeler centrifuges types V 800 BC – V 1600 BC are used for uninterrupted operation with high throughput rates in the chemical and fine chemical industries. As with the horizontal centrifuge series, for the vertical peeler centrifuges a wide selection of baskets with different diameters is available.
    advantages-block-icon

    Advantages

    • Excellent adaptability to changing products
    • High throughputs
    • Separation through filtration or sedimentation
    • Low residual moisture levels through high spinning factor



    The following basket concepts are available:

    Sieve basket for filtration
    For separating crystalline products from suspensions by way of filtration.

    Sedimentation basket without holes
    This special design is used in connection with suspensions which in the centrifugal field shall be separated by way of sedimentation.

    Discharger and discharging of solids
    Solids are discharged by way of a hydraulically actuated discharger, which depending on the size of the centrifuge has been designed by way of a full surface discharger or a swivelling/lowering discharger.

    Technical Data

    Centrifuge type Basket diameter (mm) Basket depth (mm) Filter area (m²) Nominal volume
    (l)    		 Max. Filling
    (kg)    		 Max. Speed
    (1/min)    		 Centrifugal force
    (x g)
    V 800 BC 800 630 1.58 160 200 1,500 797
    V 1000 BC 1,000 630 1.98 250 315 1,200 805
    V 1250 BC 1,250 800 3.14 500 625 950 631
    V 1600 BC 1,600 1,000 5.03 1,025 1,280 750 503

    Dimensions and Weights

    Centrifuge type Length (mm) Width (mm) Height
    (mm)    		 Weight
    (kg)
    V 800 BC 2,520 1,430 1,400 2,400
    V 1000 BC 2,700 1,630 1,500 3,300
    V 1250 BC 2,980 1,880 1,600 5,500
    V 1600 BC 3,225 2,350 3,195 12,500
