    Vertical Peeler
    Centrifuge Gypsum

    Gypsum Design - Series V 800 - 1600 BG

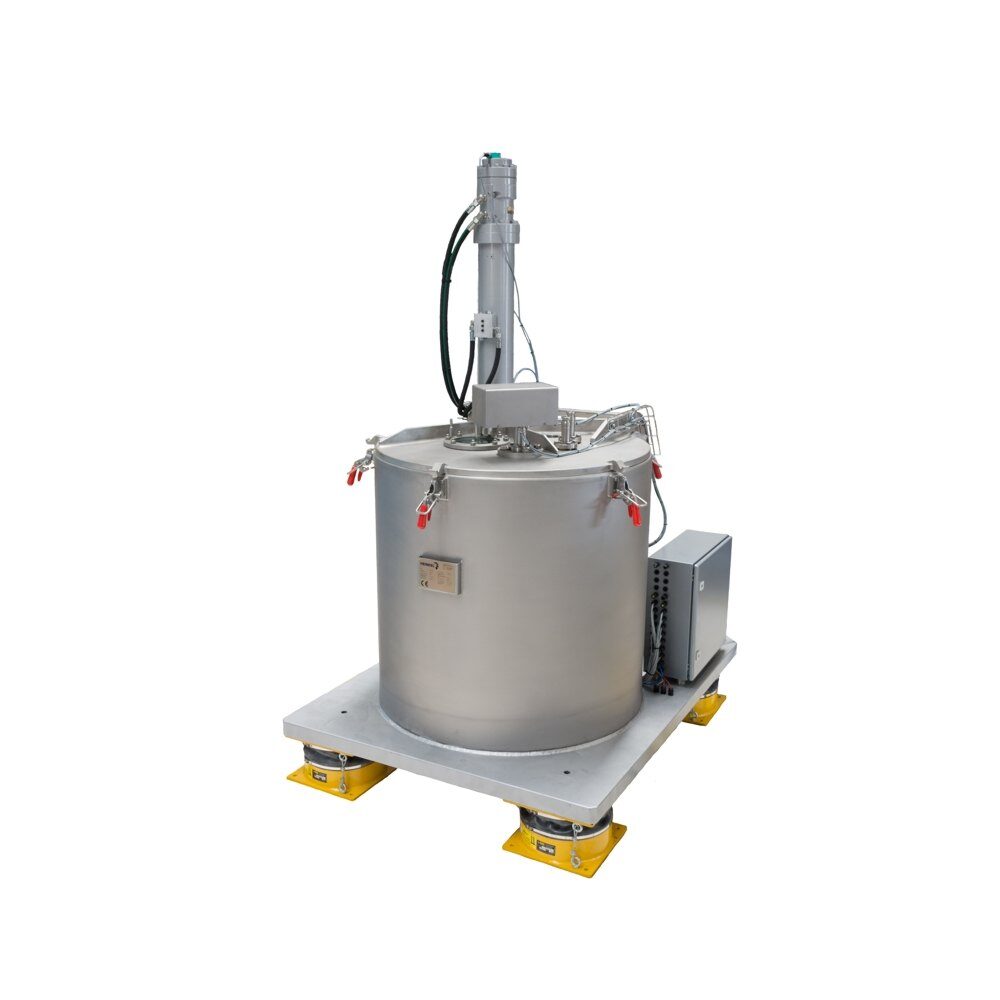

    V800BG-1 (1)

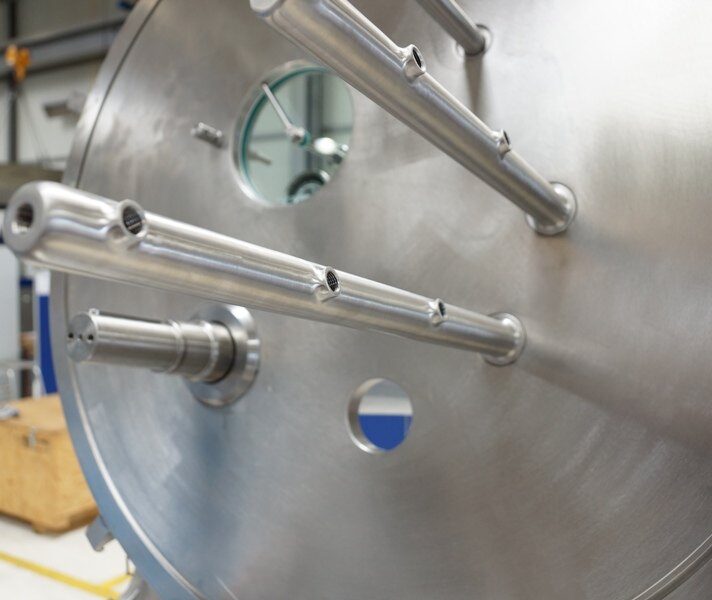

    V800BG_Deckel_klein (1)

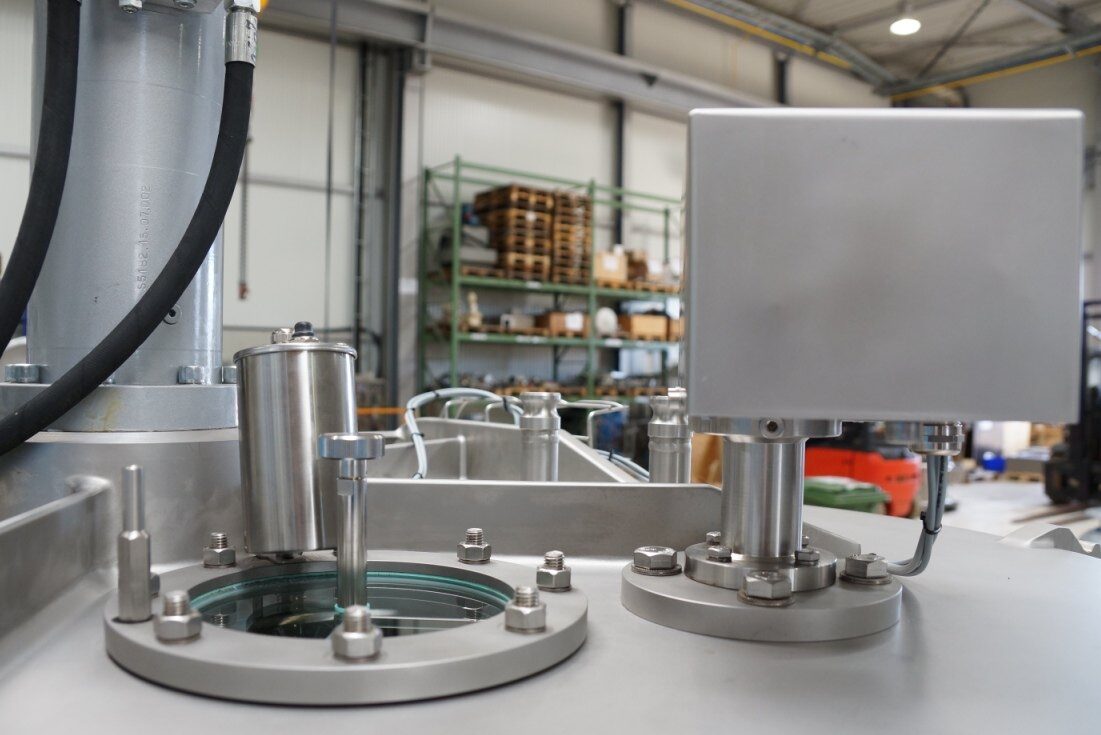

    V800BG_Schauglas (1)

    Through many years of experience with renowned plant manufacturers in the area of flue gas desulphurization (FGD) plants, HEINKEL is in a position to ensure smooth, reliable project handling on schedule.

    Worldwide plaster from flue gas desulphurisation plants is dewatered in power plants using HEINKEL centrifuges. The broad range of plaster centrifuges with different basket sizes allows for optimum adaptation to changing product properties and throughputs.
    advantages-block-icon

    Advantages

    • Optimum application for small to medium throughputs
    • High availability
    • Minimum residual moisture
    • Maximum reduction of chloride concentrations through optimised washing process
    • Alternatively stainless steel or rubber coated

    Technical Data

    Centrifuge type Basket diameter (mm) Basket depth (mm) Filter area (m²) Nominal volume (l) Max.Filling(kg) Max. Speed (1/min) Centrifugal force (x g)
    V 800 BG 800 630 1.58 160 200 1,500 797
    V 1000 BG 1,000 630 1.98 250 315 1,200 805
    V 1250 BG 1,250 800 3.14 500 625 950 631
    V 1600 BG 1,600 1,000 5.03 1,000 1,280 800 573
    1,600 1,250 6.28 1,250 1,560 800 573

    Dimensions and Weights

    Centrifuge type Length (mm) Width (mm) Height (mm) Weight (kg)
    V 800 BG 1,800 1,300 2,470 3,900
    V 1000 BG 2,050 1,500 2,510 4,400
    V 1250 BG 2,300 1,750 2,820 5,300
    V 1600 BG 2,900 2,300 2,180 11,800
    3,100 2,300 2,180 13,500
