    Vertical Peeler
    Centrifuge Pharma

    Pharma Design - Series V 1000 - 1250 BP

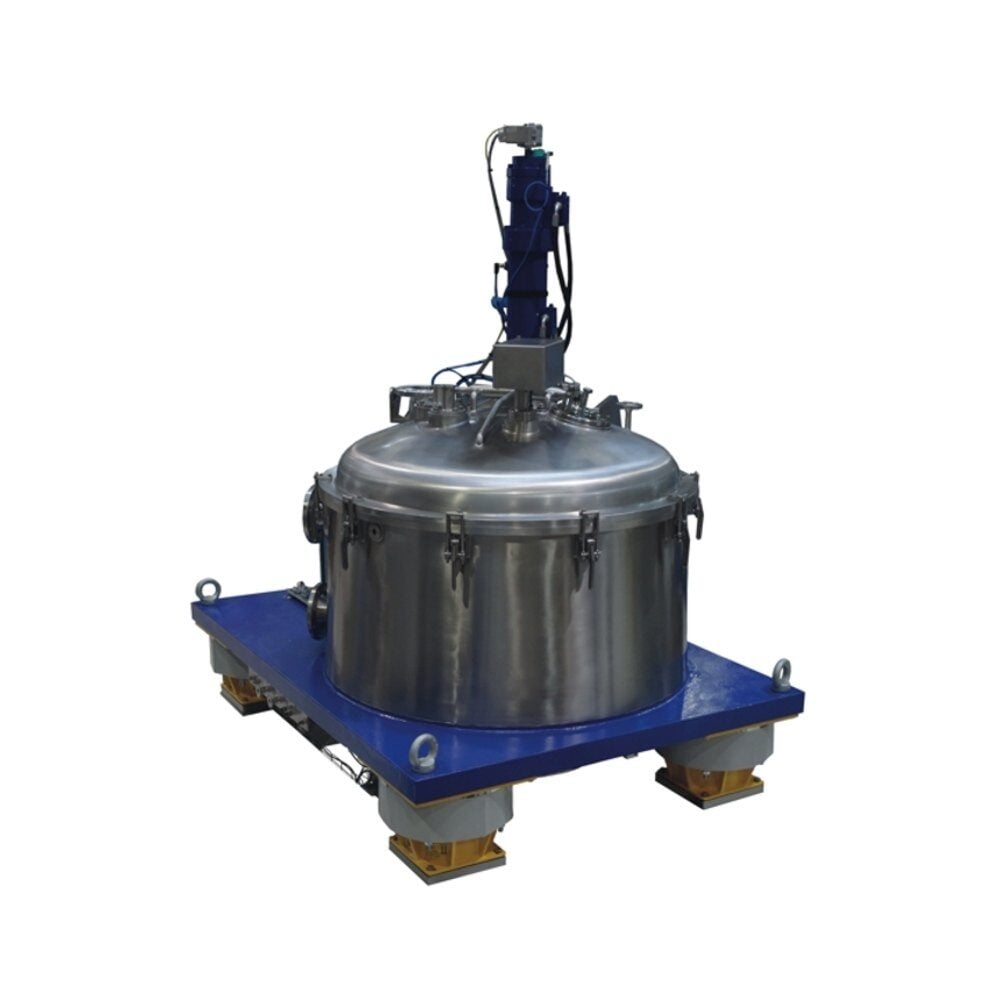

    V1000BP-1 (1)

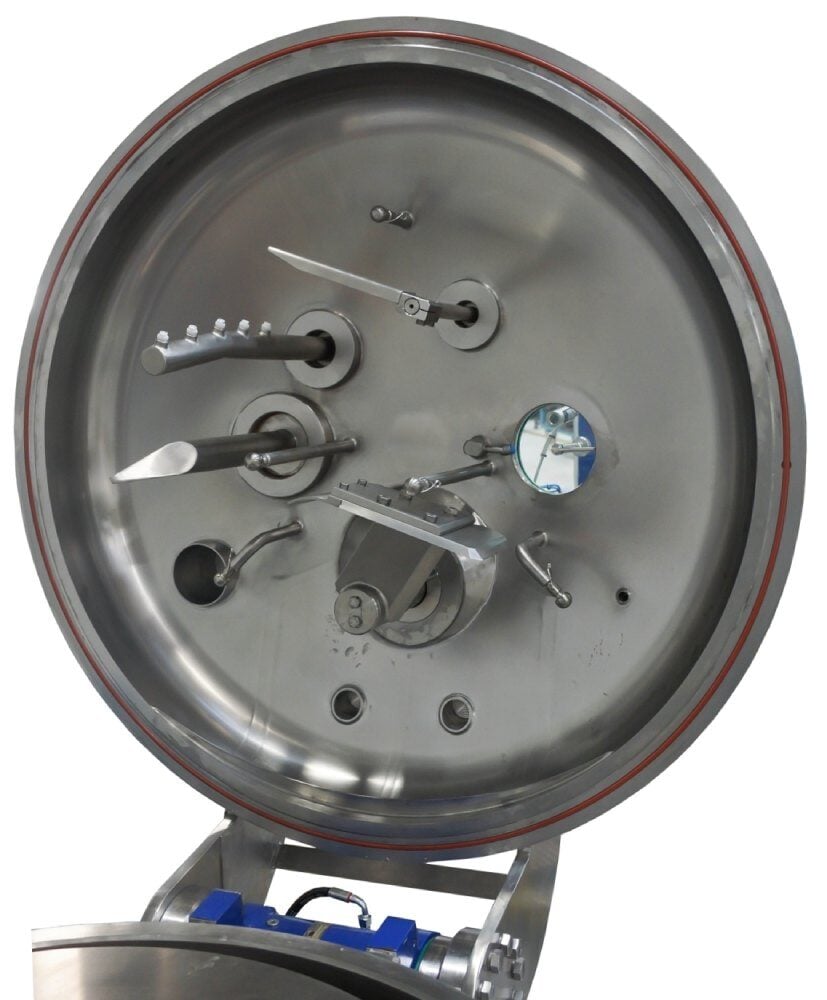

    V1000BP_Deckel_Mini_neu (1)

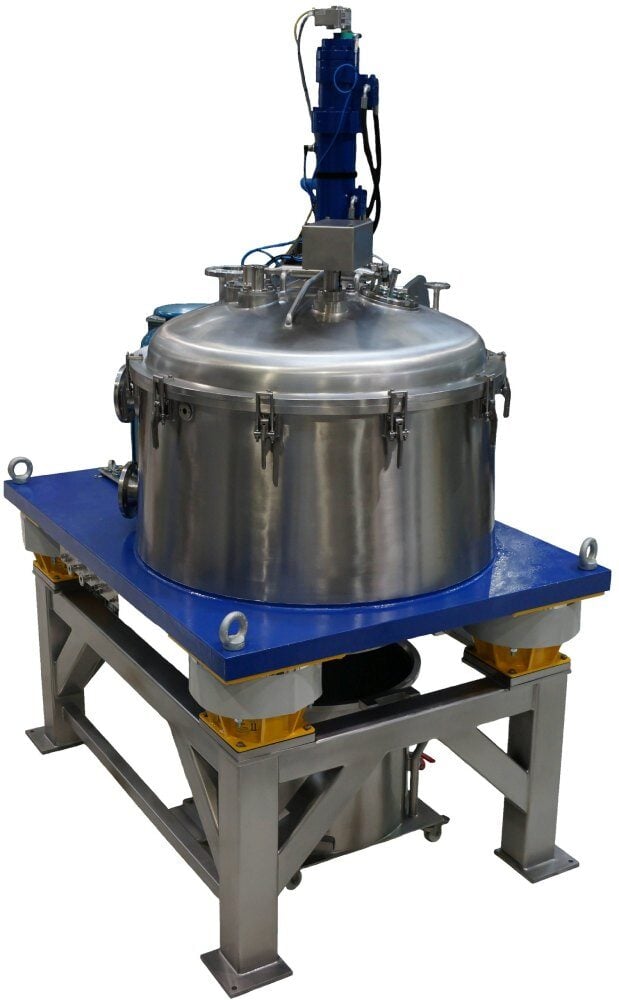

    V1000BP_mit_Aufstellgerüst-scaled (1)

    Vertical peeler centrifuges type V 1000 – 1250 BP in cGMP execution are mainly used in the pharmaceutical industry. The process housing opens and closes automatically, thus enabling the complete inspection of all components in the process area. Cleaning is carried out by means of an effective, fully automated CIP system and it is complete with the flooding of the process enclosure if necessary. The GMP and specification compliant documentation ensures optimum qualification.
    advantages-block-icon

    Advantages

    • Small footprint
    • cGMP compliant
    • Automatic opening, respectively closing of the process housing
    • Optimised product discharge
    • Automatic CIP cleaning
    • Easy accessibility of all machinery parts in contact with the product

    Technical Data

    Centrifuge type Basket diameter (mm) Basket depth (mm) Filter area (m²) Nominal volume
    (l)    		 Max. Filling (kg) Max. Speed (1/min) Centrifugal force (x g)
    V 1000 BP 1,000 500 1.57 200 250 1,200 805
    V 1250 BP 1,250 630 2.47 250 492 1,200 1,006

    Dimensions and Weights

    Centrifuge type Length (mm) Width (mm) Height
    (mm)    		 Weight
    (kg)
    V 1000 BP 2,700 1,630 1,500 3,200
    V 1250 BP 2,980 1,880 1,600 5,300
