    Vertical Pilot Plant Centrifuge Chemical

    Chemical Design - Series V 300 - 500 TC

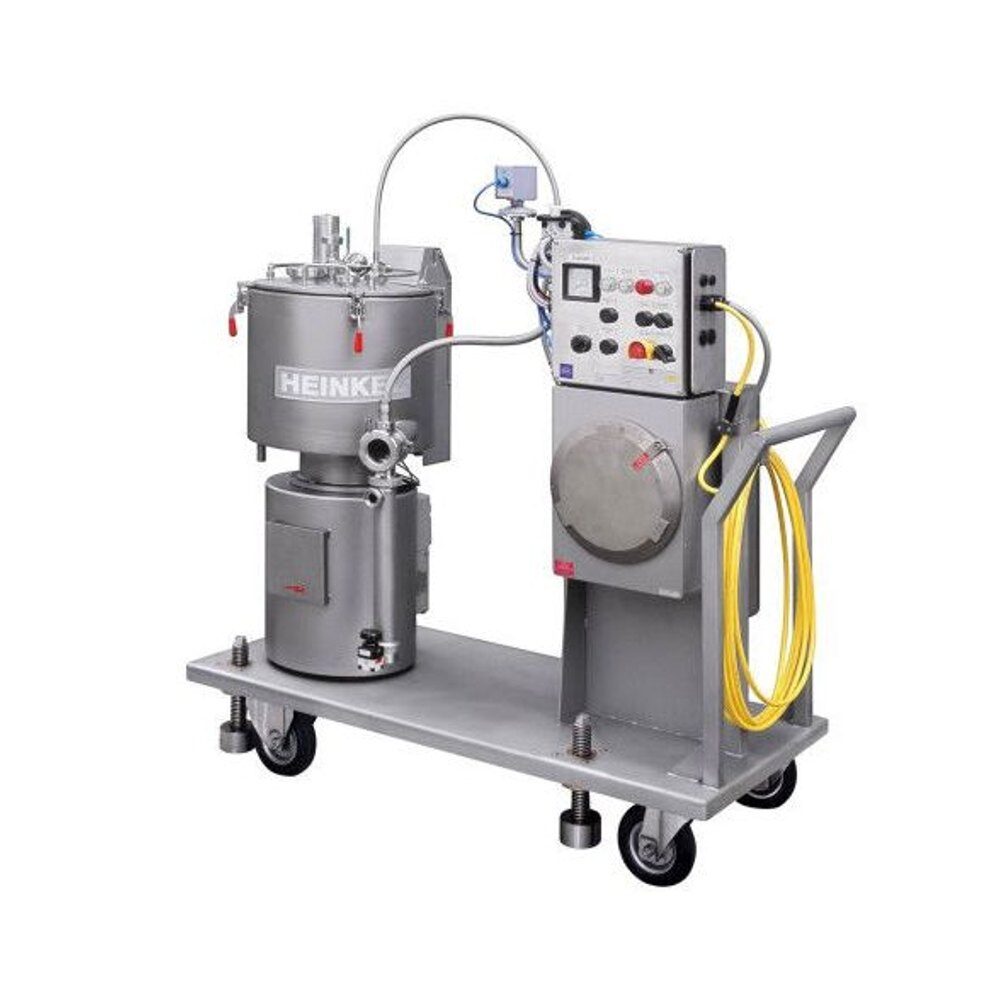

    V300TC-1 (1)

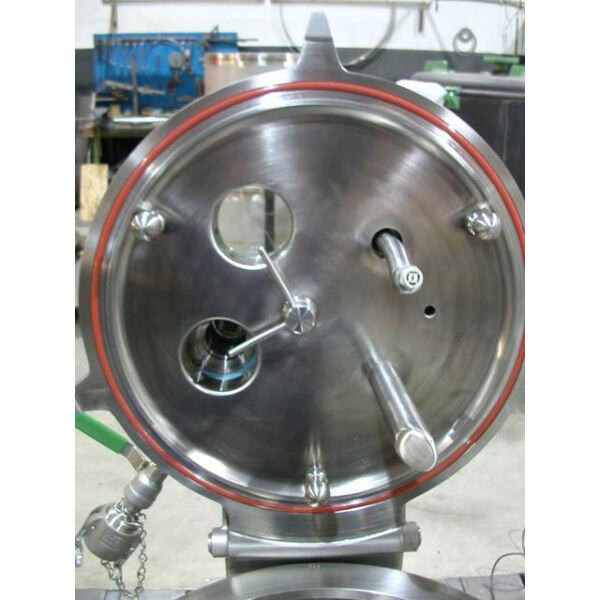

    V200-500-TC-2-600x600

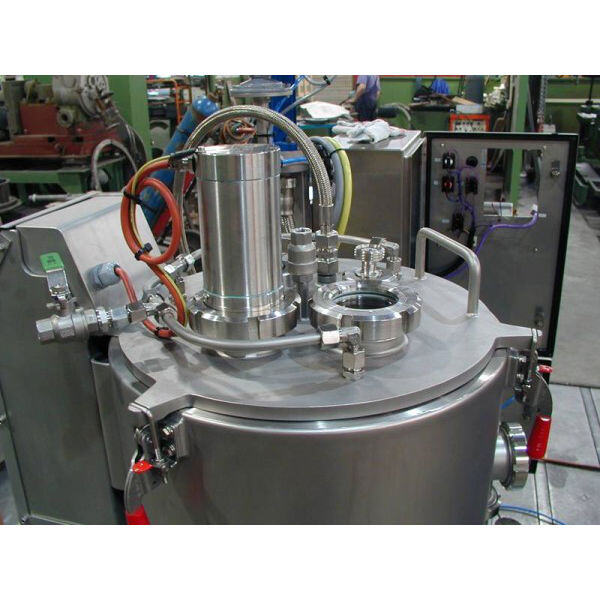

    V200-500-TC1-600x600

    The HEINKEL Pilot Plant Vertical centrifuges are characterized by a mobile compact design and easy installation for use in the laboratory and pilot plant.

    The centrifuge is specially designed for cGMP requirements in the chemical industry.
    advantages-block-icon

    Advantages

    • Mobile, compact design
    • Very simple installation "plug and use" application
    • Ideal for "upscaling"
    • Jacketed to heat up and cool down
    • Baskets for basic tests for filtration, sedimentation and classifying

    Technical Data

    Centrifuge type Basket
    diameter (mm)    		 Basket depth (mm) Filter area (m²) Nominal volume
    (l)    		 Max. Filling max. (kg) Max. Speed
    (1/min)    		 Centrifugal force
    (x g)
    V 300 TP 300 150 0.14 4.9 6 3,500 2,054
    V 400 TP 400 250 0.31 16 20 2,500 1,397
    V 500 TP 500 300 0.47 30 38 2,000 1,118

    Dimensions and Weights

    Centrifuge type Length (mm) Width
    (mm)    		 Height (mm) Weight (kg)
    V 300 TP 600 1,250 1,760 450
    V 400 TP 800 1,400 1,930 550
    V 500 TP 900 1,500 1,930 1,300
