    Vertical Pilot Plant Centrifuge Pharma

    Pharma design - Series V 300 - 500 TP
    V300TP-1 (1)
    V200-500-TP-2-600x600
    V200-500-TP-3-600x600
    V300TP_1010_31 (1)

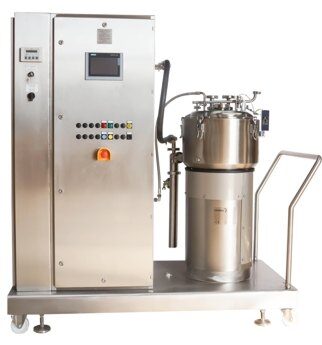

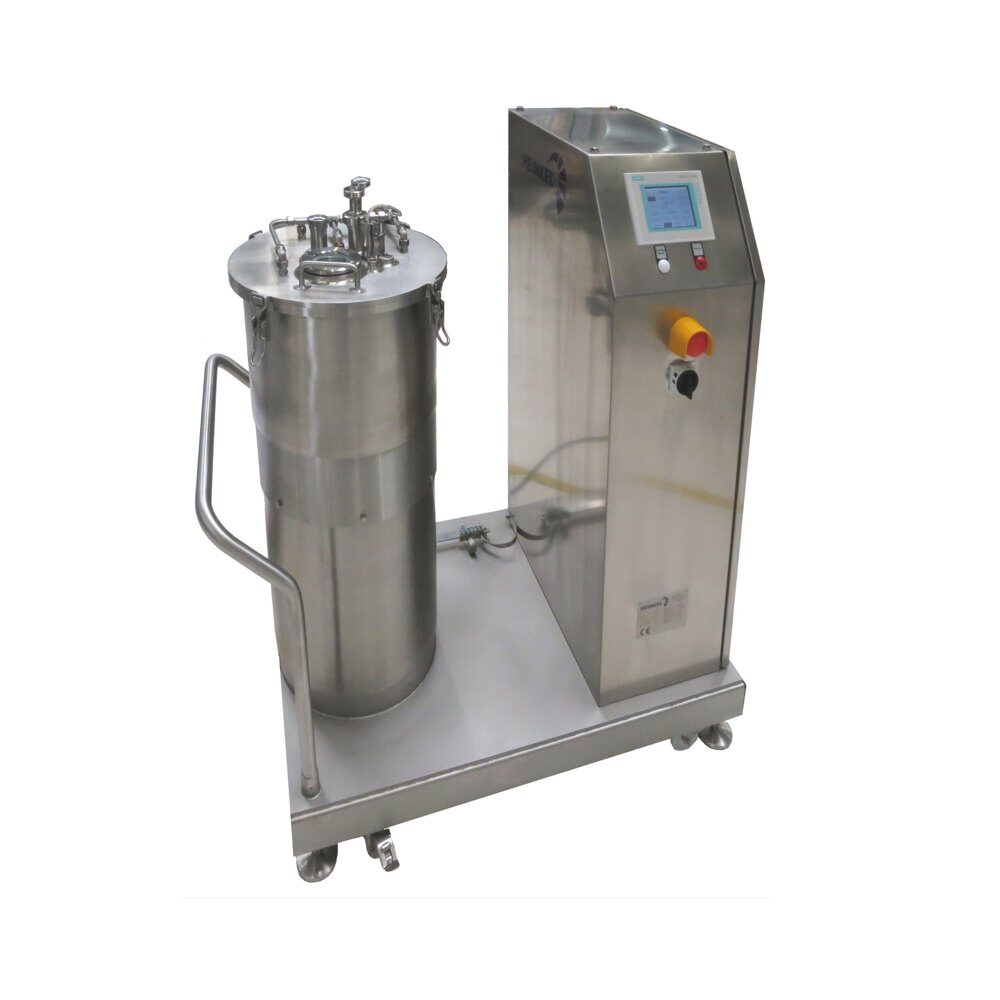

    The HEINKEL Pilot Plant Vertical centrifuges are characterized by a mobile compact design and easy installation for use in the laboratory and pilot plant.The centrifuge is specially designed for cGMP requirements in the pharmaceutical industry.
    advantages-block-icon

    Advantages

    • Mobile, compact design
    • Very simple installation "plug and use" application
    • Ideal for "up scaling"
    • Very simple to operate
    • CIP cleaning
    • For installation within isolators/glove boxes

    Technical Data

    Centrifuge type Basket diameter (mm) Basket depth (mm) Filter area (m²) Nominal volume (l) Max. Filling (kg) Max. Speed (1/min) Centrifugal force (x g)
    V 300 TP 300 150 0.14 4.9 6 3,500 2,054
    V 400 TP 400 250 0.31 16 20 2,500 1,397
    V 500 TP 500 300 0.47 30 38 2,000 1,118

    Dimensions and Weights

    Centrifuge type Length (mm) Width
    (mm)    		 Height (mm) Weight (kg)
    V 300 TP 600 1,250 1,760 450
    V 400 TP 800 1,400 1,930 550
    V 500 TP 900 1,500 1,930 1,300
