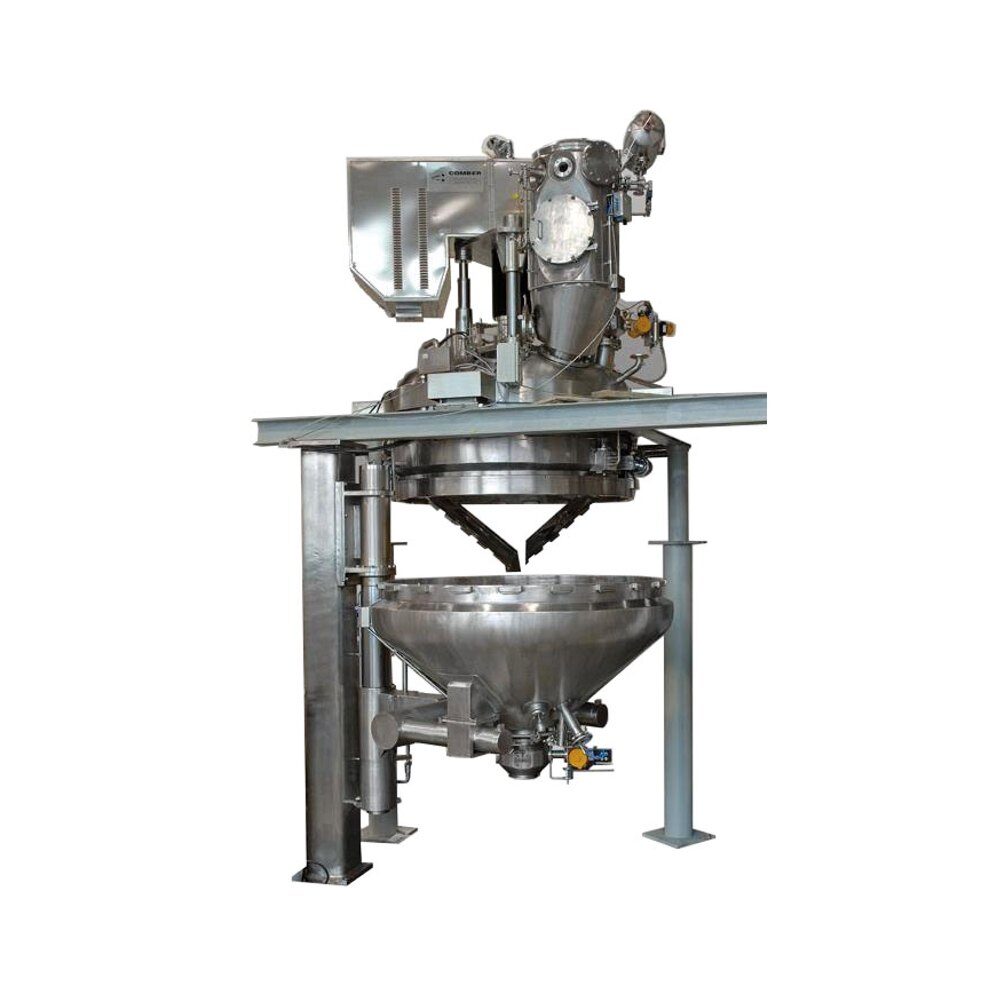

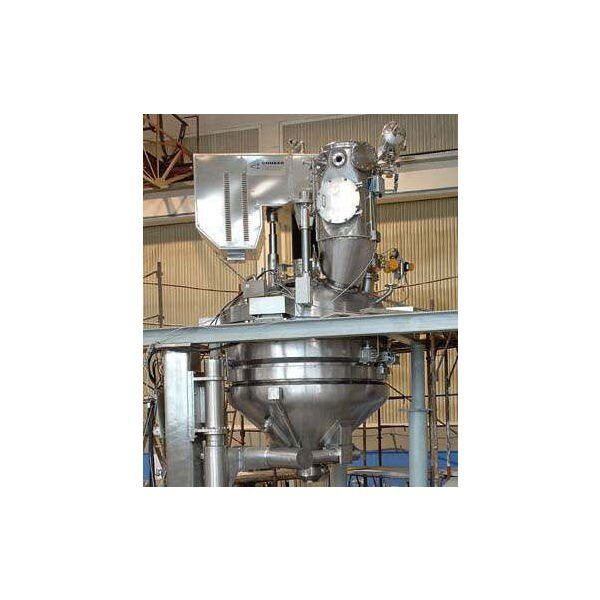

HEINKEL Vertical Vacuum Dryer

In compliance with cGMP and FDA guidelines, also in aseptic/ steam sterilizable versions
Excellent product discharge performance with negligible product hold-up due to the conical vessel bottom, very close agitator to wall/bottom clearances and a unique agitator design
The agitator permits uniform mixing of the entire product mass, without the formation of lumps or balls
The surface area for heat transfer is maximized for optimum performance and cycle times
Agitator supported by the top head, with the seal in contact with the vapors only
Entirely welded agitator design, without any bolts, without pockets and with all edges rounded for good cleanability

Technical Data

Product wetted materials	Stainless steels, Nickel based alloys such as Hastelloy C 22 or Alloy 59, Titanium, etc.,
Sealing materials	PTFE gaskets, O-Rings in FFKM or FEP encapsulated
Area classification	EU-Type Examination Certificate INERIS the 2014/34/EU Directive, or with electrical components UL approved for operation in a Class 1, Division 1 or 2, Groups C&D environment
Controls	Control cabinet with PLC, HMI with touch screen, MCC, interface for DCS
Guidelines	Calculation, design and manufacture in accordance with the Pressure Equipment Directive (PED) 2014/68/EU and /or the ASME pressure vessel code, Section VIII, with U-Stamp
Usable volume	25 – 13,500 liters
Design temperature	-10 to 150°C (14 to 302°F) or per requirements
Design pressure	-1 to +0.45 barg (FV to 6.5 psig), -1 to +6 barg (FV to 90 psig) in pressure proof version or per requirements
Heated areas	All product wetted components, including agitator shaft, arms and blades
Accessories	Dust filter with automatic back cleaning, sampling valve, CIP system, sight glass with vessel light, vacuum system with condenser, heating and cooling unit etc.
