Pneumatic Conveying from Agitated Nutsche Filter-Dryers

In the pharmaceutical, fine chemical, and specialty chemical industries, processing solids with high purity requirements often involve Agitated Nutsche Filter-Dryers (ANFDs). These sophisticated pieces of equipment combine filtration and drying in a single, enclosed unit, reducing handling and contamination risks for sensitive products. A key element that enhances the efficiency and cleanliness of this process is pneumatic conveying, which safely transports dried product from the ANFD to the next stage with minimal exposure (or can transport product to the filter-dryer, though for the purposes of this post we'll be focusing on discharging capabilities).

As De Dietrich Process Systems is a well-known and respected supplier of both nutsche filter-dryers and solids handling systems, we know the benefits of combining these two technologies to provide high containment and flow control of solids during product discharge from the filter-dryer. The purpose of this blog is to introduce and describe these benefits so that you have a better understanding of it. First, let’s discuss what’s so great about ANFDs.

Why Agitated Nutsche Filter-Dryers?

Agitated Nutsche Filter-Dryers have become a preferred choice in the chemical and pharmaceutical industries due to their versatility, efficiency, and compact design. Here are some key benefits that make ANFDs a valuable asset in process operations:

1. Lower Capital Costs: ANFDs combine filtration and subsequent washing and drying of solids in one unit, reducing the need for separate equipment for each step. This integration minimizes upfront capital investment, as there’s no need to purchase and install individual filtration and drying systems. The streamlined design also reduces ancillary equipment requirements, lowering overall costs.
2. Smaller Installation Footprint: Since ANFDs perform multiple functions within a single, compact vessel, they occupy significantly less floor space than traditional multi-step setups. This smaller installation footprint is especially beneficial for facilities with limited space, allowing for more efficient layout planning and potentially freeing up space for additional operations.
3. Reduced Equipment Cleaning Requirements: ANFDs’ integrated design means fewer transfer points between stages, reducing the risk of cross-contamination and making them easier to clean. With all filtration, washing, and drying steps completed in a single enclosed vessel, the cleaning process is faster and requires fewer resources. This can lead to significant savings in downtime and labor costs, as well as reduced use of cleaning solvents or chemicals.

Why Pneumatic Conveying for ANFDs?

In many cases, the dried solids are discharged from the filter-dryer and flow by gravity to subsequent processes such as milling or packaging. However, when direct gravity discharge is not possible due to height restrictions or other limiting factors, the solids must often be transported both vertically upward and horizontally by other means. One alternative method to achieve this is to collect the solids from the dryer discharge and pneumatically convey them to the desired downstream location. Pneumatic conveying is ideal for handling sensitive and valuable materials post-filtration and drying. Here’s why it is advantageous for ANFD systems:

1. Closed-System Conveying: Pneumatic systems, like DDPS's Powder Pump, provide a closed pathway that significantly reduces contamination risks, which is critical in pharmaceutical and fine chemical applications where product purity is paramount.
2. Minimal Material Handling: Using a pneumatic system means fewer handling steps, which minimizes degradation and maintains product integrity. This is especially useful for fragile particles or powders that could otherwise clump or degrade under mechanical transfer methods.
3. Enhanced Safety: The Powder Pump and other types of pneumatic systems transport powders under controlled pressure, reducing the risks associated with dust exposure and handling of hazardous or reactive substances.

Key Considerations for Pneumatic Conveying from ANFDs

In a recent DDPS White Paper, several alternative methods and benefits of achieving high levels of product discharge from our Filter-Dryers were presented and discussed. Many the methods described can also be used in conjunction with a DDPS Powder Pump System to collect and pneumatically convey the solids as they are discharged from the Filter-Dryer. This combination of equipment can provide a highly contained and labor-saving method to transfer the product to its next destination.

A system, such as the example configurations shown here, can provide an ideal solution:

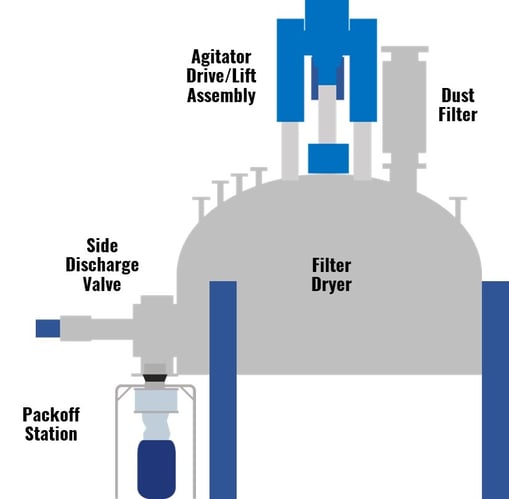

Filter-Dryer to Pack-Off System

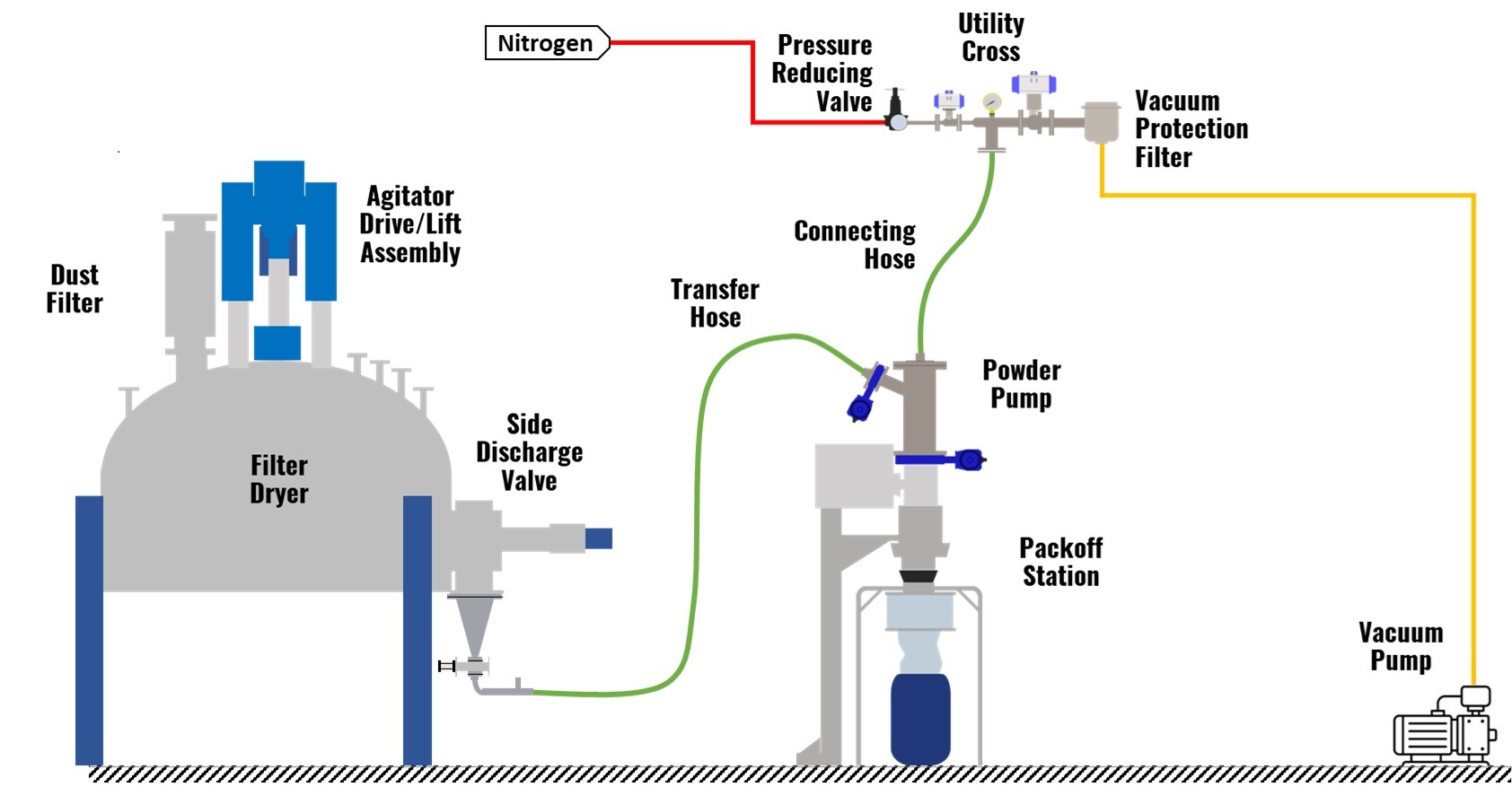

Filter-Dryer to Pack-Off System with the Powder Pump System

This integrated Filter-Dryer and Powder Pump system can also provide a controlled flow rate of solids to a downstream process by automatically matching the discharge rate from the Filter-Dryer to the desired conveying rate of the Powder Pump system.

Integrating a pneumatic system like the Powder Pump with an ANFD involves several considerations to ensure efficiency and safety:

1. System Design: The pneumatic system must be carefully designed to handle the material characteristics, such as particle size, moisture content, and cohesiveness. Customized air flow and pressure adjustments help prevent clogging and ensure smooth conveyance.
2. Energy Efficiency: Pneumatic systems can be energy-intensive, particularly for high-capacity operations. Optimizing the conveying distance and using the right type of blower or vacuum system can make the process more energy efficient.
3. Air Filtration and Dust Control: During the conveying process, controlling dust is essential to prevent contamination and ensure compliance with safety standards. Many pneumatic systems for ANFDs incorporate dust collection units to maintain cleanliness and prevent product loss.

Discharge Considerations

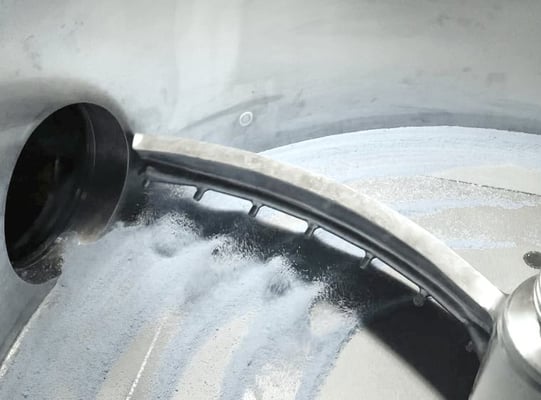

One specific discharge option (discussed in the White Paper) describes the use of an optional Gas Knife system on the filter-dryer’s agitator blades. This feature allows the highest level of product removal by blowing the residual heel of solids out the side discharge valve. An additional benefit of using a Powder Pump system to convey the solids is it can be used to collect, remove and filter the resultant gas stream this Gas Knife will produce when in operation.

Gas Knife System for Agitated Nutsche Filter-Dryers

Improved discharging methods lead to several benefits, such as:

1. Improved Product Yield: The enclosed design reduces product loss that can occur through other handling methods, increasing overall yield.
2. Reduced Downtime: The Powder Pump System can be easily integrated with the discharge of an ANFD, allowing for faster and more seamless product transfer. This minimizes downtime and optimizes the production flow.
3. Scalability and Flexibility: Powder Pump Systems can be scaled up to handle increased production volumes without extensive modifications. Additionally, they are adaptable to process changes, such as the need to transport material to different locations or across longer distances.

When a Nutsche Filter-Dryer is integrated with a DDPS Powder Pump system, the final solids transfer operation that occurs during product discharge can similarly be contained and automated for improved manufacturing efficiency and product quality.

Common Applications of Pneumatic Conveying with ANFDs

As described above, a DDPS Nutsche Filter-Dryer allows multiple processing steps to be completed within the confines of a single vessel, thus avoiding potential exposure of the product to the environment or personnel during multiple transfer operations that would otherwise be required. This system design is ideal for:

1. Pharmaceuticals: Ensuring product purity is paramount. Pneumatic systems transport active pharmaceutical ingredients (APIs) safely and efficiently from the drying stage without compromising quality.
2. Fine Chemicals: In applications where fine powders are involved, pneumatic conveying provides a dust-free environment and helps maintain the desired particle size distribution, preventing clumping and degradation.
3. Specialty Chemicals: Specialty chemicals often require precise handling due to sensitivity to contamination or degradation. Pneumatic conveying minimizes handling steps and exposure, maintaining product integrity.

Pneumatic conveying from Agitated Nutsche Filter-Dryers offers a reliable, efficient, and contamination-free method for transferring sensitive dried materials. By minimizing material handling, enhancing product purity, and providing a scalable solution, pneumatic conveying is a viable option for industries requiring precise control over product transfer. For more information about our Powder Pump System and contained transfer capabilities, check out our Powder Handling Solutions Portfolio or download our white paper on advanced containment capabilities.
